Interlock Cable Inspection

Disconnect the interlock cable from the selector lever component.

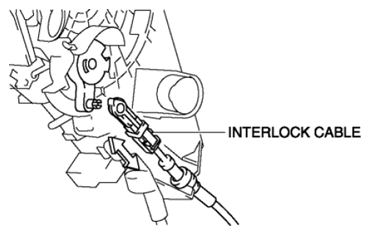

Fig 1: Interlock Cable And Selector Lever
Switch the ignition to ON.
Verify that the interlock cable moves smoothly when the brake pedal is depressed.

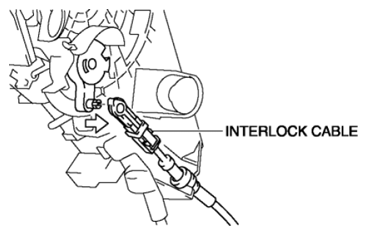

Fig 2: Identifying Interlock Cable
- If there is any malfunction, replace the interlock cable. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
