Front Door Key Cylinder Removal/Installation: Notes

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in} .

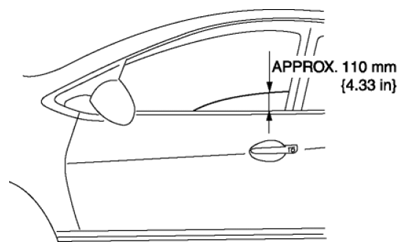

Fig 1: Identifying Distance From Top Of Front Door Glass To Upper Part Of Front Beltline Molding
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
Remove the service hole cover.

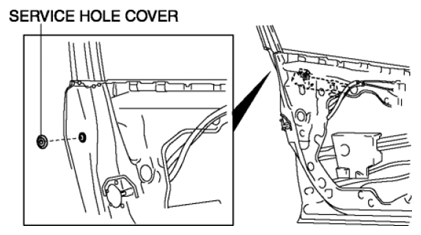

Fig 2: Identifying Service Hole Cover
Remove the tab, then remove the door lock-link bracket. (Driver's door) (See Rod Protector Installation Note .)

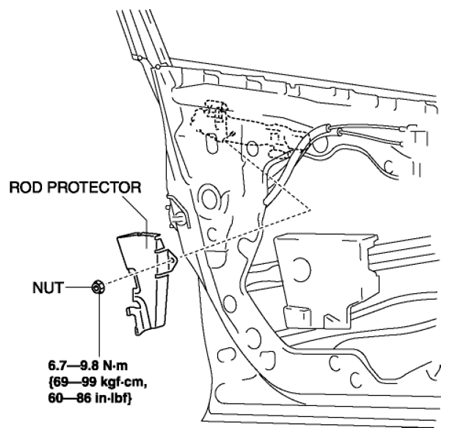

Fig 3: Rod Protector And Nut With Torque Specification
Remove the service hole cover.

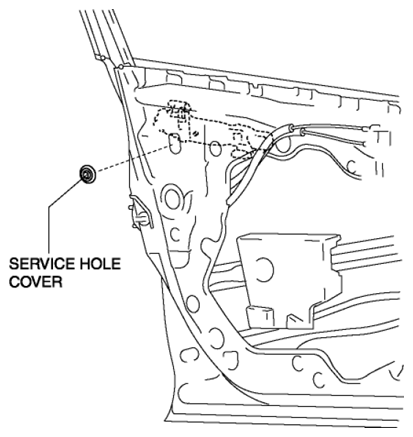

Fig 4: Identifying Service Hole Cover
Remove the screw from the service hole.
NOTE:
- The screw cannot be removed because of the stopper.

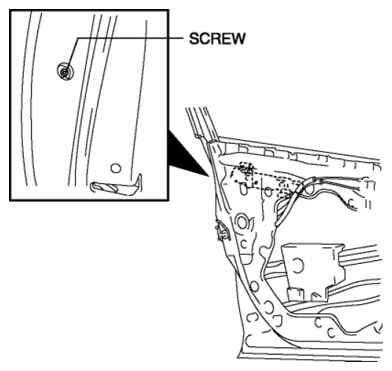

Fig 5: Identifying Screw Of Service Hole

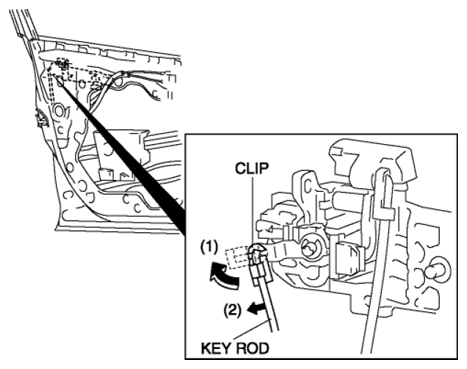

Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).

Fig 6: Pulling Out Key Rod
Press the tab on the front outer handle bracket in the direction of the arrow.

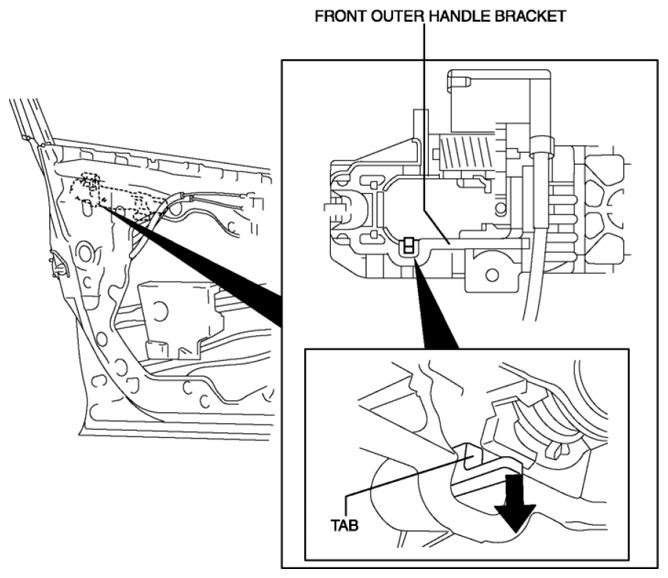

Fig 7: Pressing Tab On Front Outer Handle Bracket
Maintaining the condition in procedure 9, remove the front key cylinder.

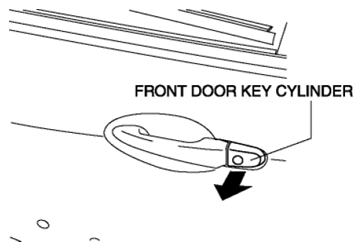

Fig 8: Removing Front Key Cylinder
Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the arrow, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.

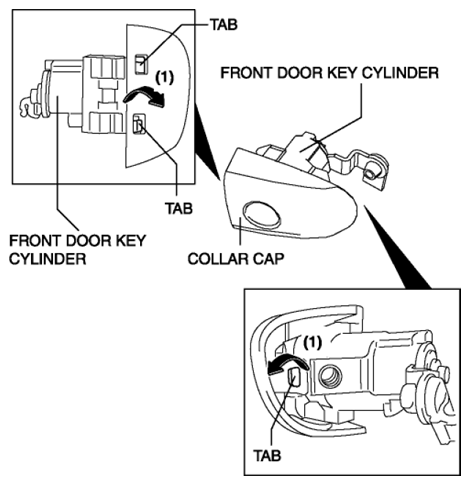

Fig 9: Pressing Front Door Key Cylinder Tabs
Install in the reverse order of removal.
