Front Outer Handle Removal/Installation: Notes

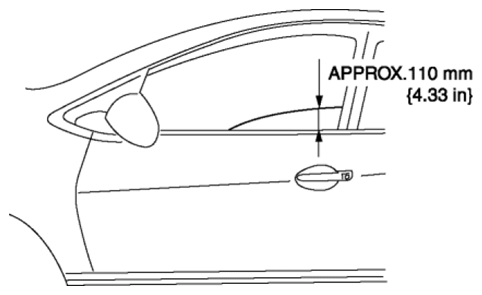

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in} .

Fig 1: Identifying Distance From Top Of Front Door Glass To Upper Part Of Front Beltline Molding
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
6. Rod protector (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
7. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)

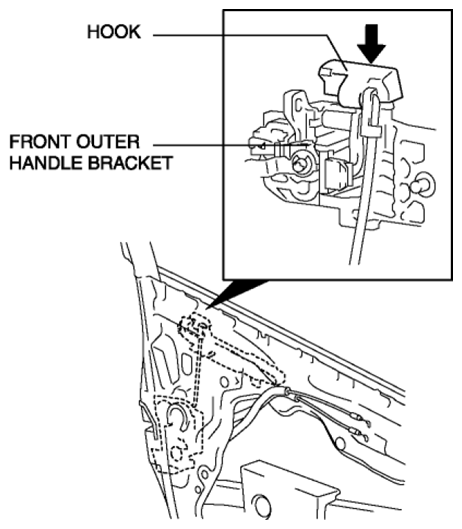

Press the hook on the front outer handle bracket in the direction of the arrow.

Fig 2: Pressing Hook On Front Outer Handle Bracket

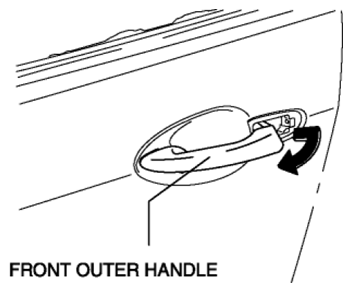

Maintaining the condition in procedure 4, remove the front outer handle.

Fig 3: Removing Front Outer Handle

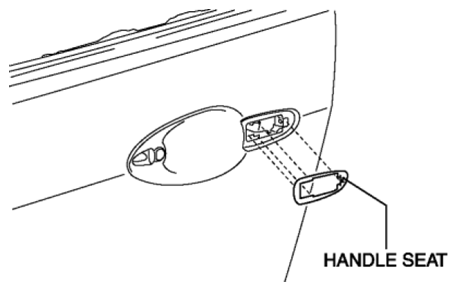

Remove the handle protector and handle seat.

Fig 4: Identifying Handle Protector And Handle Seat
Remove the double-sided adhesive tape from the handle protector and body. (See Outer handle bracket Installation Note .)

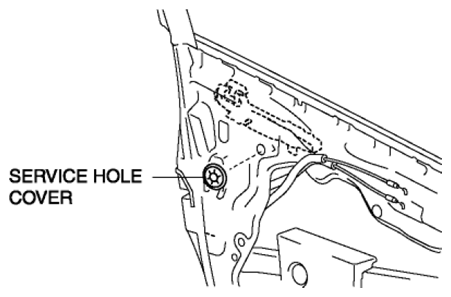

Remove the service hole cover.

Fig 5: Identifying Service Hole Cover

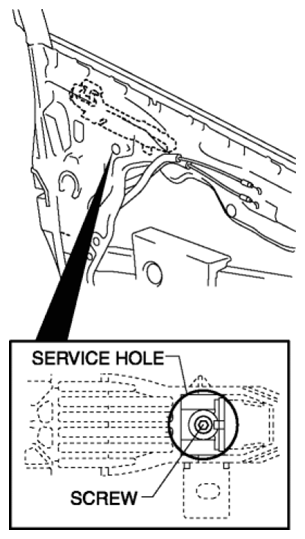

Remove the screw from the service hole.
NOTE:
- The screw cannot be removed because of the stopper.
Fig 6: Identifying Screw Of Service Hole

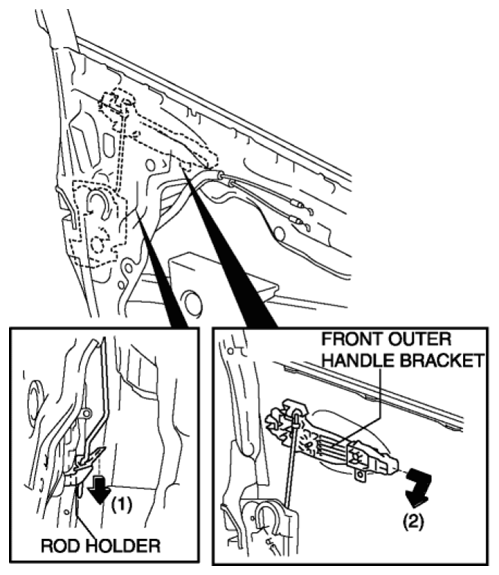

Press down the rod holder in the direction of arrow (1) and remove the front outer handle bracket in the direction of arrow (2).(See Outer handle bracket Installation Note .)

Fig 7: Pressing Down Rod Holder
Install in the reverse order of removal.
