Keyless Receiver Removal/Installation [Keyless Entry System]

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

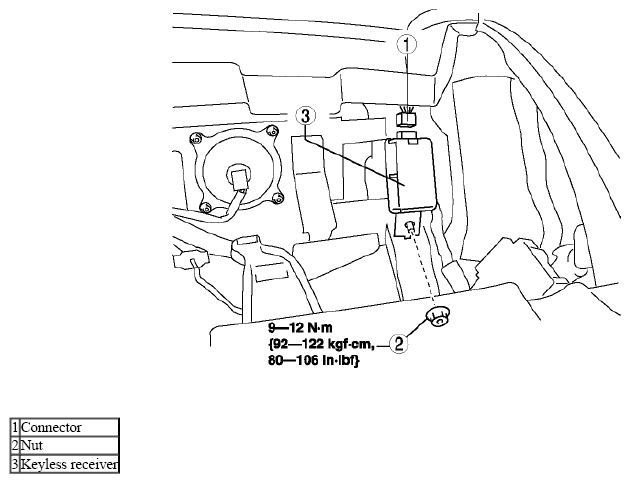

    Fig 1: Keyless Receiver, Nut And Connector With Torque Specification
    G08108102
  4. Install in the reverse order of removal.
