Transmitter Battery Replacement [Keyless Entry System]

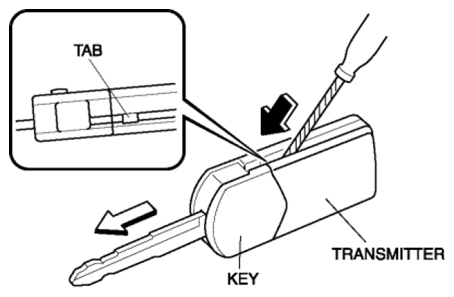

Insert a flathead screwdriver into the transmitter notch and remove the key from the transmitter by pressing the tab.

Fig 1: Removing Key From Transmitter

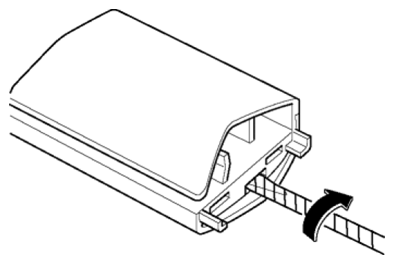

Insert a flathead screwdriver into the transmitter notch and open the transmitter.

Fig 2: Inserting Flathead Screwdriver Into Transmitter Notch

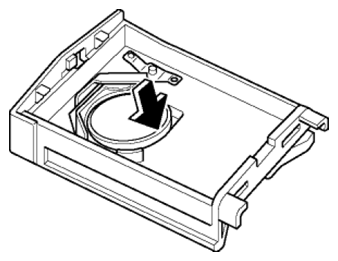

Remove the battery by pressing it in the direction of the arrow shown in the figure.

Fig 3: Removing Transmitter Battery

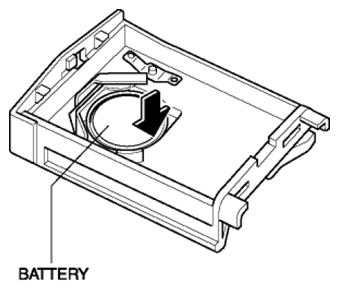

Install the new battery (CR1620) with the plus pole facing down.

Fig 4: Installing Transmitter Battery (CR1620) With Plus Pole Facing Down
Align the upper and lower covers and close the transmitter.
Battery type
- Lithium battery CR1620
  Battery life
- Approx. 2 years (when used approx. 10 times/day)
Install the key to the transmitter.
NOTE:

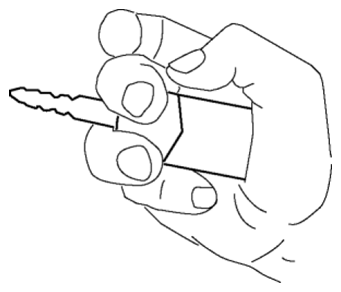

- When connecting the key to the transmitter, grip the key and the transmitter as shown in the figure and connect until a click sound is heard.
- If the key is not completely connected to the transmitter, they may come apart.
Fig 5: Installing Key To Transmitter
