Power Window Main Switch Disassembly/Assembly

1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
3. Remove the driver's side front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
4. Remove the power window main switch. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
5. Disassemble in the order shown in the figure.
6. Assemble in the reverse order of disassembly.

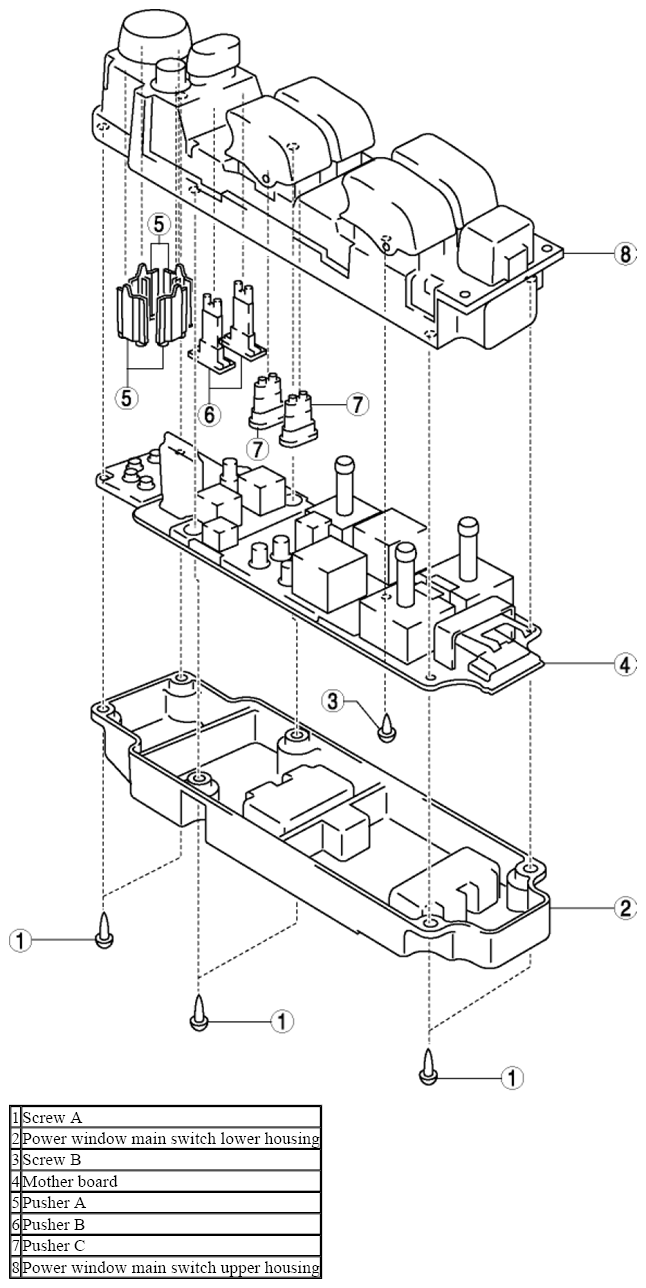

Fig 1: Identifying Power Window Main Switch Disassembly Order
