Rear Door Glass Removal/Installation: Notes

To access the glass installation bolt, adjust the position of the rear door glass that the height of the rear door glass towards the front is approx. 200 mm {7.87 in} .

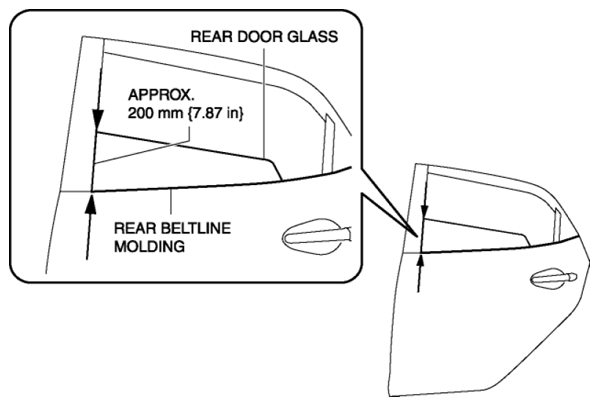

Fig 1: Position Rear Door Glass To Adjust Height
Disconnect the negative battery cable.
Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION .)
Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
Remove the rear door glass guide and glass run channel as a single unit. (See Rear Door Glass Guide Removal Note .)
Remove the hole cover A

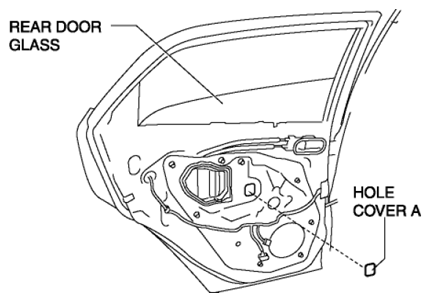

Fig 2: Identifying Hole Cover A
Slightly bend back the hole cover B.

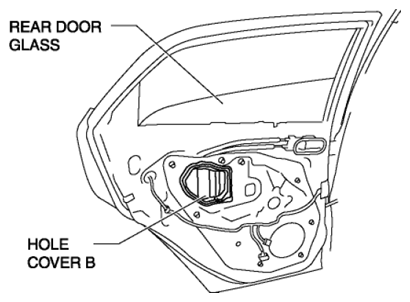

Fig 3: Identifying Hole Cover B
Remove the bolts.

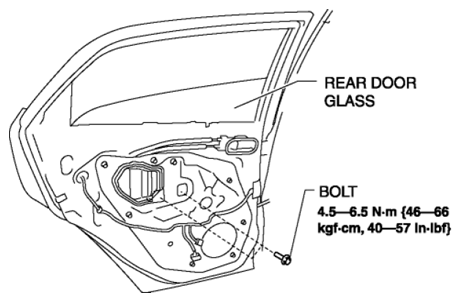

Fig 4: Rear Door Glass Bolts With Torque Specifications
CAUTION:
- If the bolts are removed without supporting the rear door glass, the rear door glass may fall off and be damaged. Remove the bolts while inserting your hand into the service hole to support the rear door glass.
Lift up the rear door glass, tilt it in the direction of arrow (1) shown in the figure, then remove it in the direction of arrow (2).

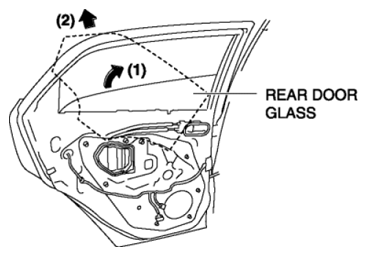

Fig 5: Rear Door Glass Removal
Install in the reverse order of removal.
CAUTION:
- If the bolts are removed without supporting the rear door glass, the rear door glass may fall off and be damaged. Remove the bolts while inserting your hand into the rear door speaker installation hole to support the rear door glass.

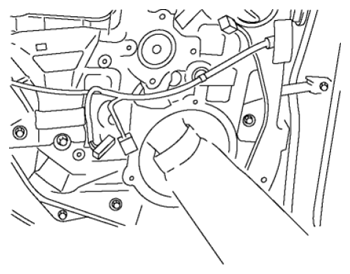

Fig 6: Supporting Rear Door Glass
