DTC P0222:00: Notes

DTC P0222:00	TP sensor No.2 circuit low input
DETECTION CONDITION	If the input voltage is less than 0.1 V , the PCM determines that the TP sensor No.2 circuit input voltage is low. Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

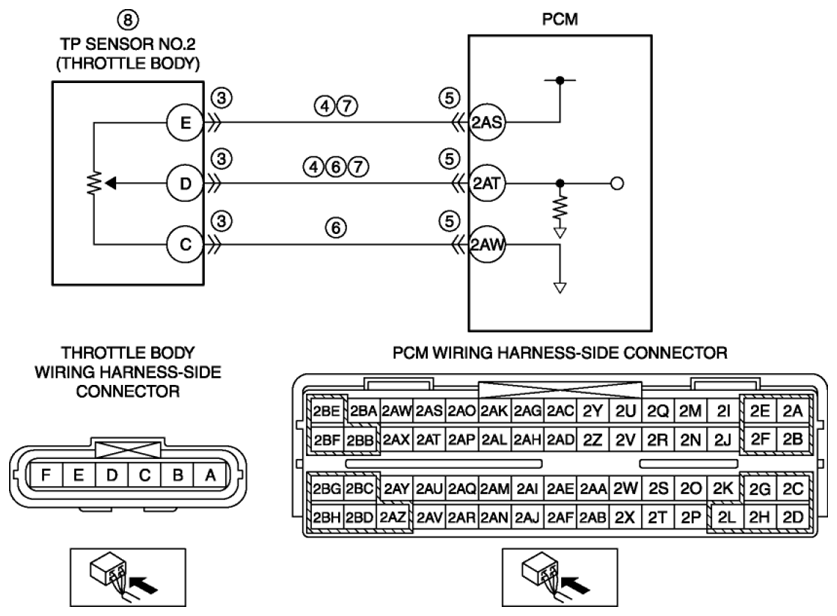

POSSIBLE CAUSE	Throttle body connector or terminals malfunction Short to ground in wiring harness between the following terminals: Throttle body terminal E-PCM terminal 2AS Throttle body terminal D-PCM terminal 2AT PCM connector or terminals malfunction TP sensor No.2 signal circuit and ground circuit are shorted to each other Open circuit in wiring harness between the following terminals: Throttle body terminal E-PCM terminal 2AS Throttle body terminal D-PCM terminal 2AT TP sensor No.2 malfunction PCM malfunction
