DTC P0223:00: Notes

DTC P0223:00	TP sensor No.2 circuit high input
DETECTION CONDITION	If the input voltage is more than 4.9 V , the PCM determines that the TP sensor No.2 circuit input voltage is high. Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

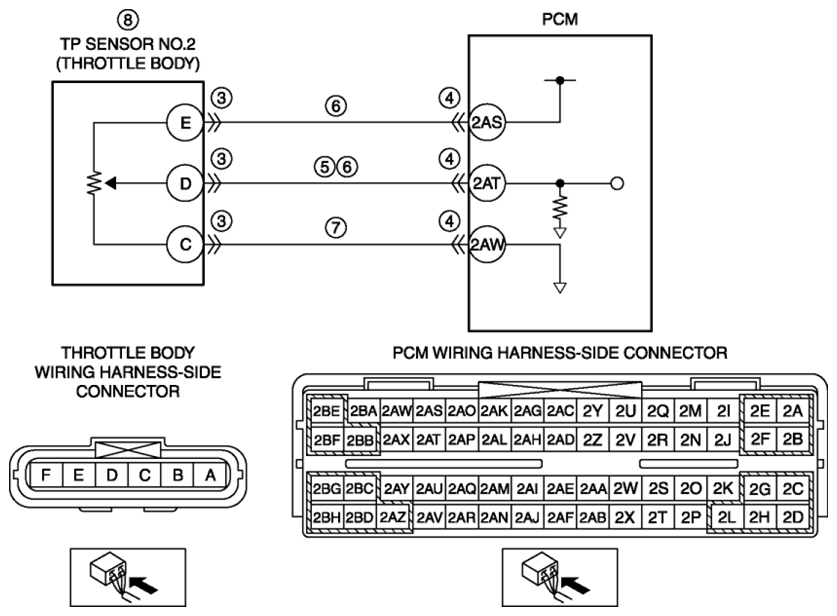

POSSIBLE CAUSE	Throttle body connector or terminals malfunction PCM connector or terminals malfunction Short to power supply in wiring harness between throttle body terminal D and PCM terminal 2AT TP sensor No.2 power supply circuit and signal circuit are shorted to each other Open circuit in wiring harness between throttle body terminal C and PCM terminal 2AW TP sensor No.2 malfunction PCM malfunction
