Symptom Troubleshooting [Engine Control System MZR 1.5]
›
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

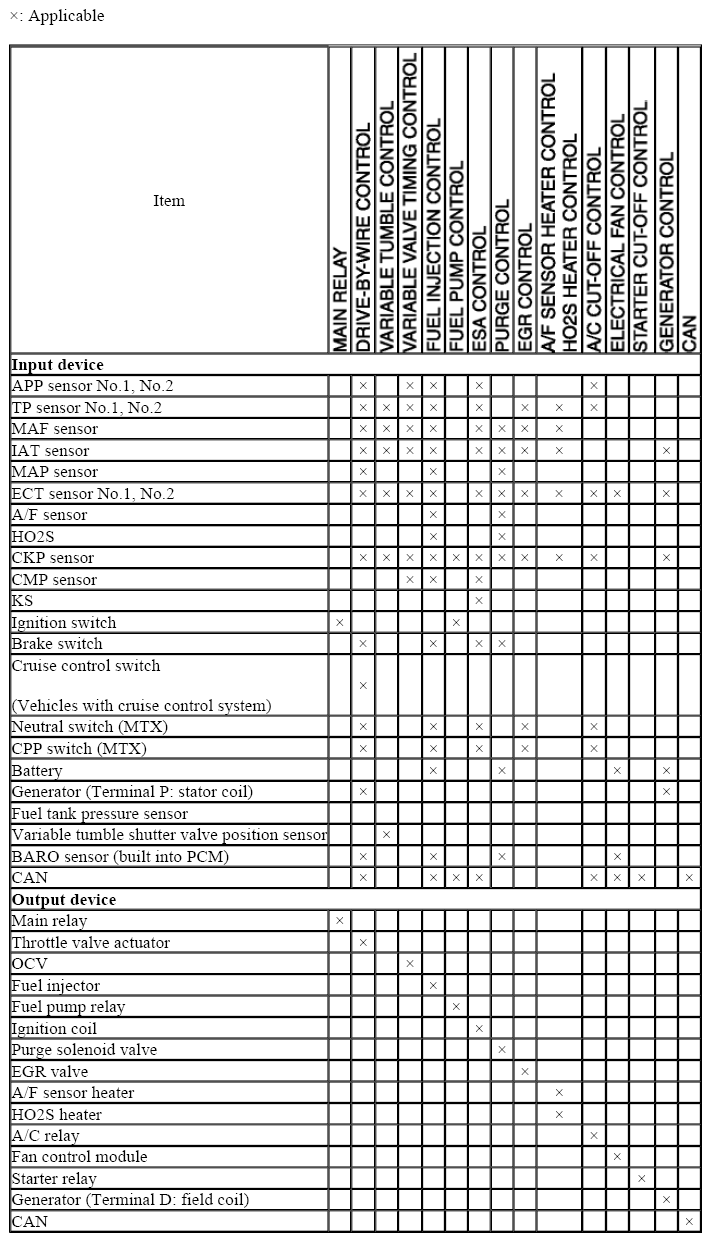

Fig 1: Control System Device And Control Relationship Chart - MZR 1.5
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
