Symptom Troubleshooting [Engine Control System MZR 1.5]
›
Quick Diagnostic Chart
Quick Diagnostic Chart

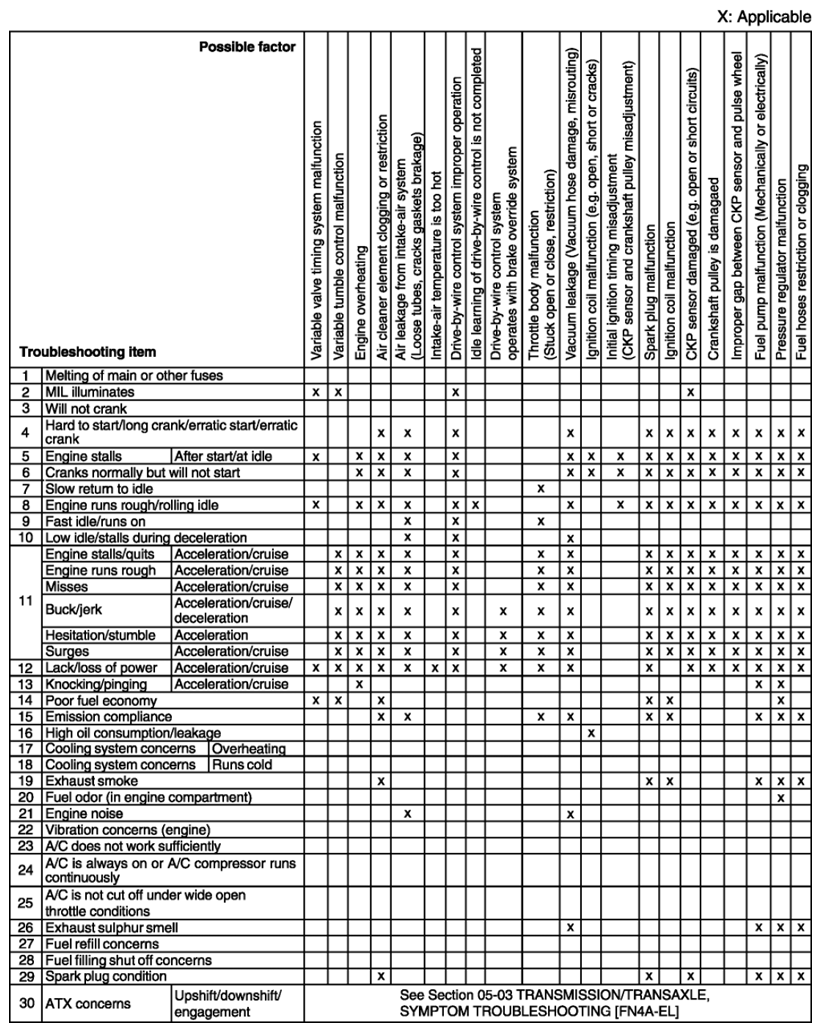

Fig 1: Quick Diagnostic Chart - MZR 1.5 (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

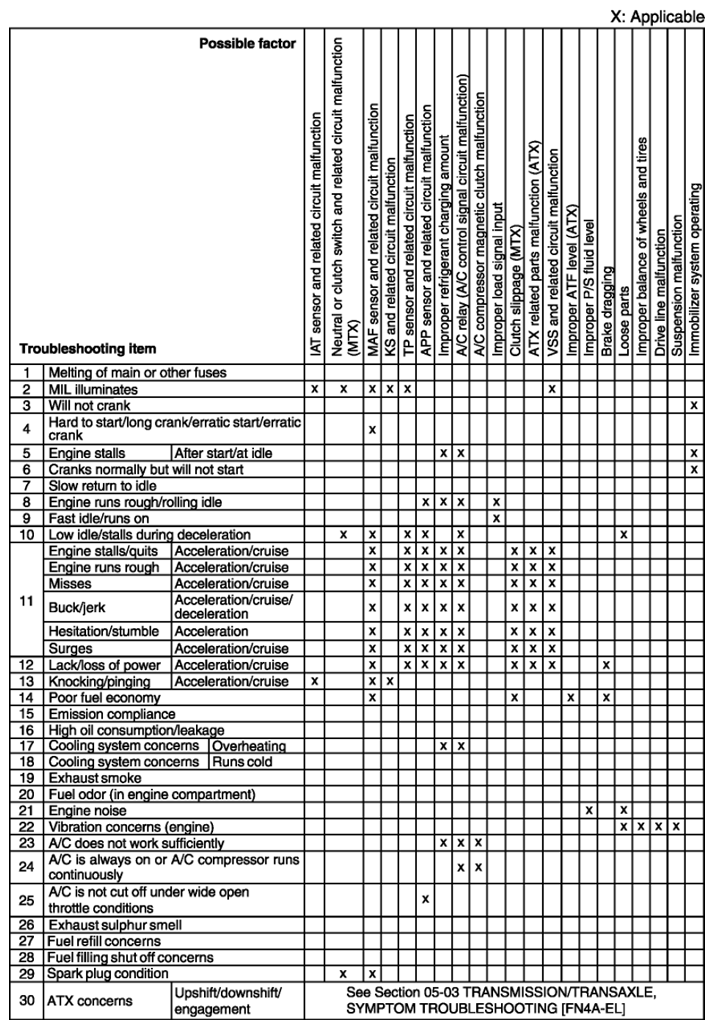

Fig 2: Quick Diagnostic Chart - MZR 1.5 (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

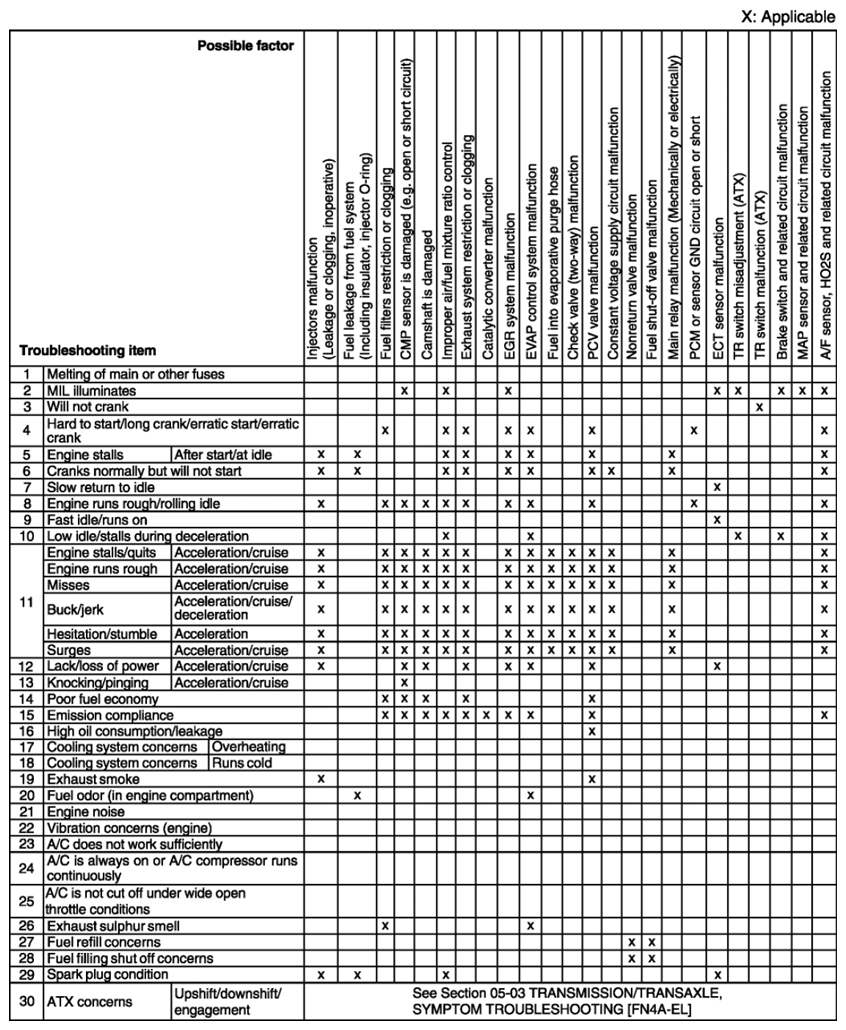

Fig 3: Quick Diagnostic Chart - MZR 1.5 (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

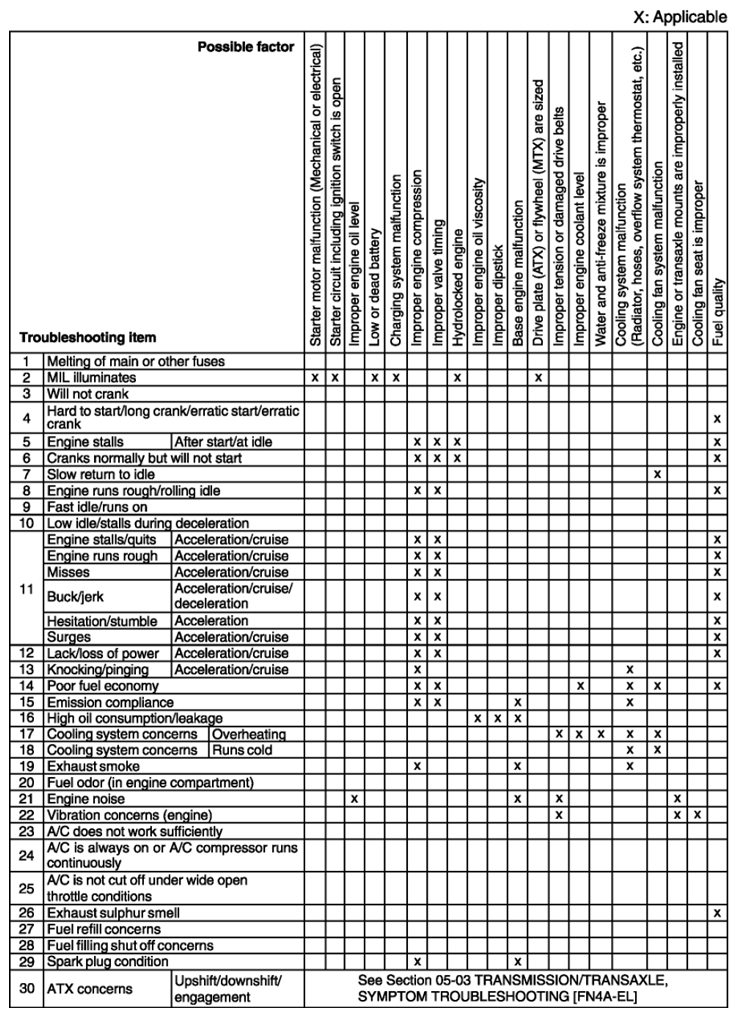

Fig 4: Quick Diagnostic Chart - MZR 1.5 (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
