Selector Cable Adjustment

Shift the selector lever to the P position.
Loosen the nut at the selector cable end.

Fig 1: Identifying Nut At Selector Cable End
Verify that the manual shaft is in the P position.

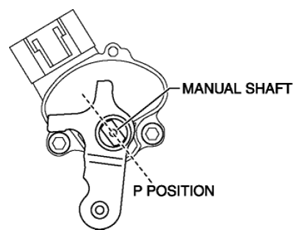

Fig 2: Identifying Manual Shaft P Position
Tighten the nut at the selector cable end.

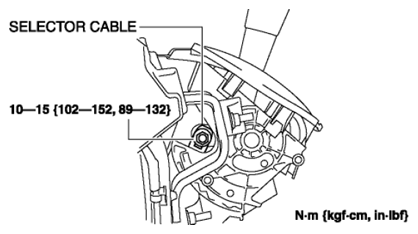

Fig 3: Nut At Selector Cable End With Torque Specifications
