| 1 |
- Switch the ignition to ON.
- Fully open the driver's side power window.

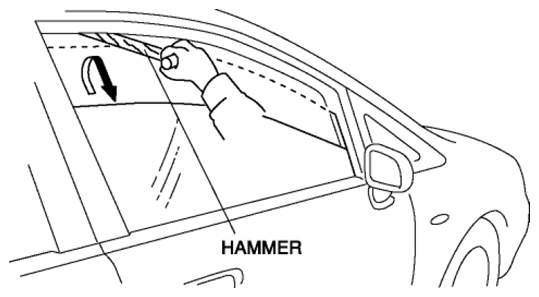

- Set the hammer (thickness: 10 mm or more) as shown below. Then, close the power window.
- Verify that the power window opens 200 mm after contacting the hammer and the operation stops.
- Does auto reverse pinch protection function operate properly?
|
Yes |
- Auto reverse pinch protection function is normal.
- Perform the two-step down function inspection.
|
| No |
Go to the next step. |
| 2 |
- Does power window open before contacting the hammer?
|
Yes |
|
| No |
- Initialize the power window main switch.
NOTE:
- Before initializing the power window main switch, cut off the power supply to the power window main switch for 60 s. Then, reconnect it again after 60 s:
- Disconnect the negative battery cable.
- Disconnect the power window main switch connector.
- Remove the fuse for the power window system.
|
