Engine Control System Diagram

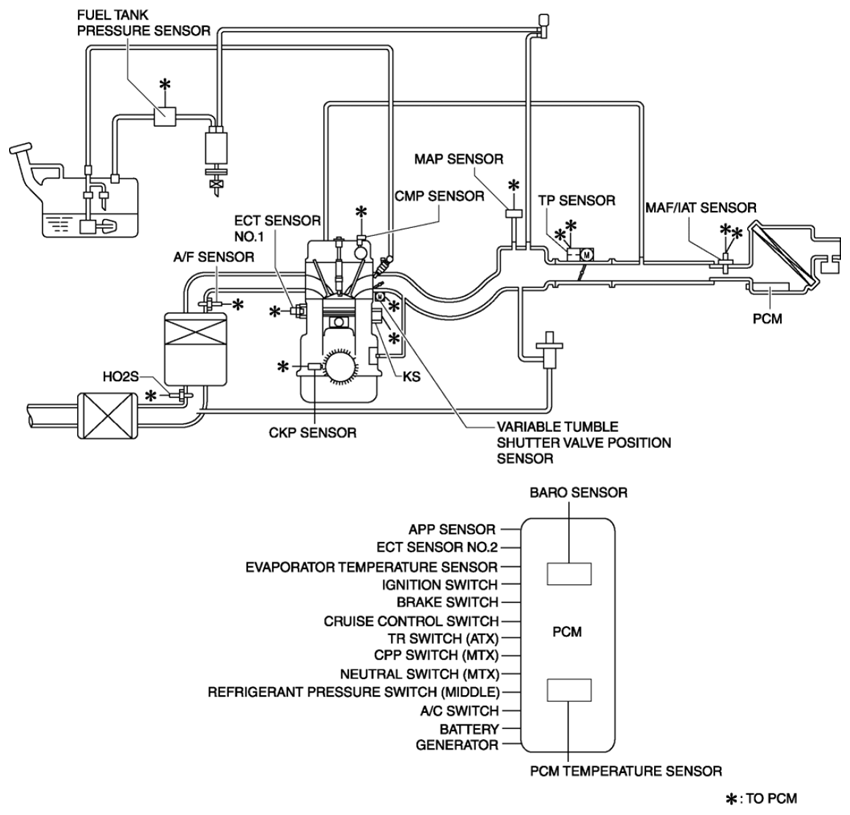

Fig 1: Engine Control System Diagram (1 Of 2)

G08107397

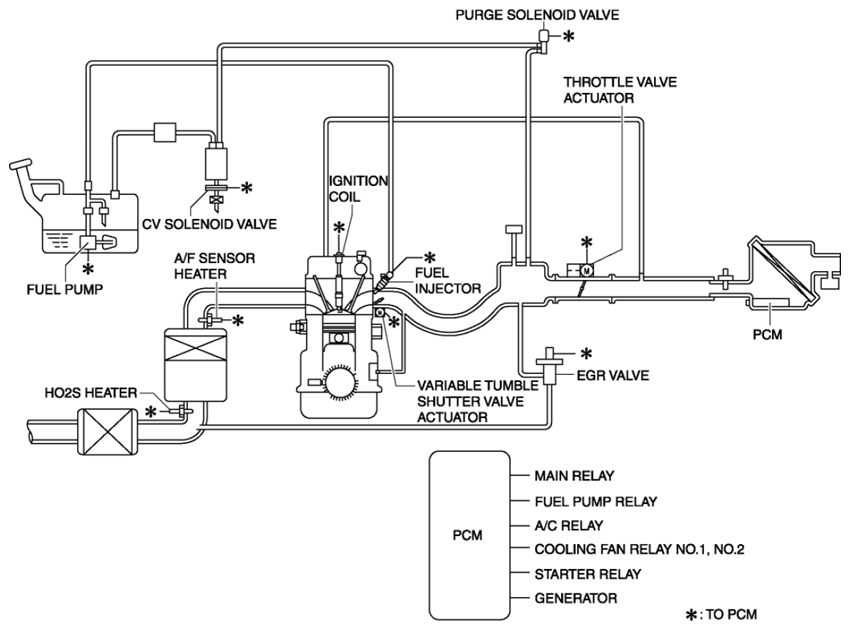

Fig 2: Engine Control System Diagram (2 Of 2)

G08107398
