Engine Control System Location Index

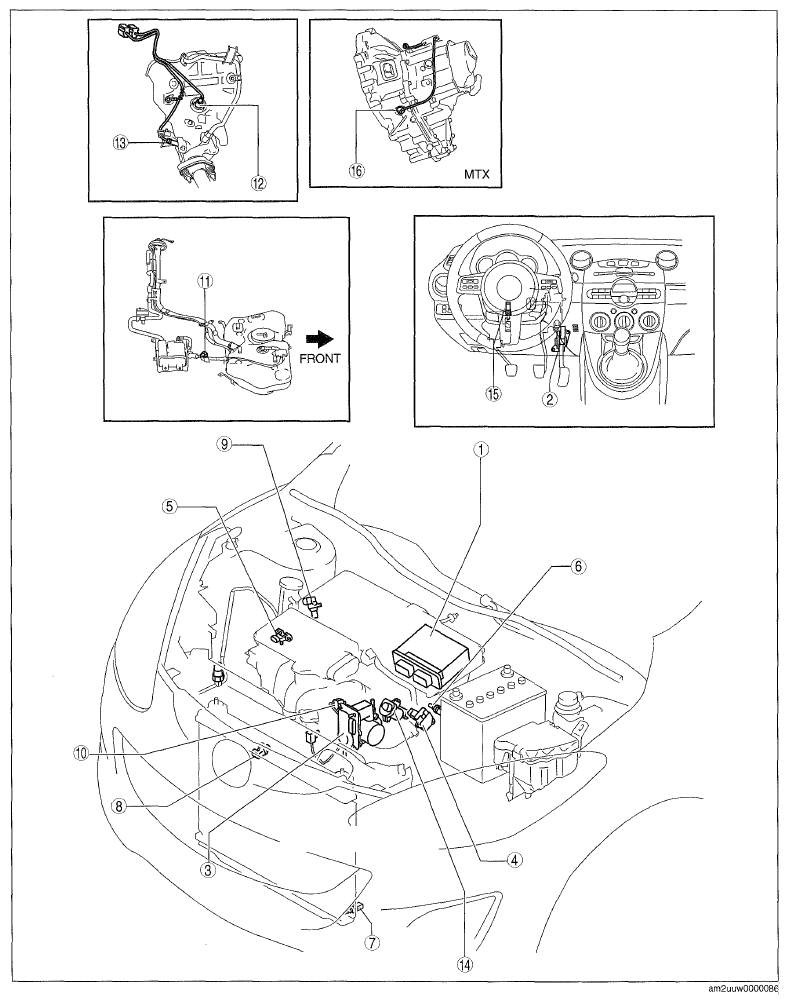

Fig 1: Engine Control System Components Location (1 Of 2)

G08107395

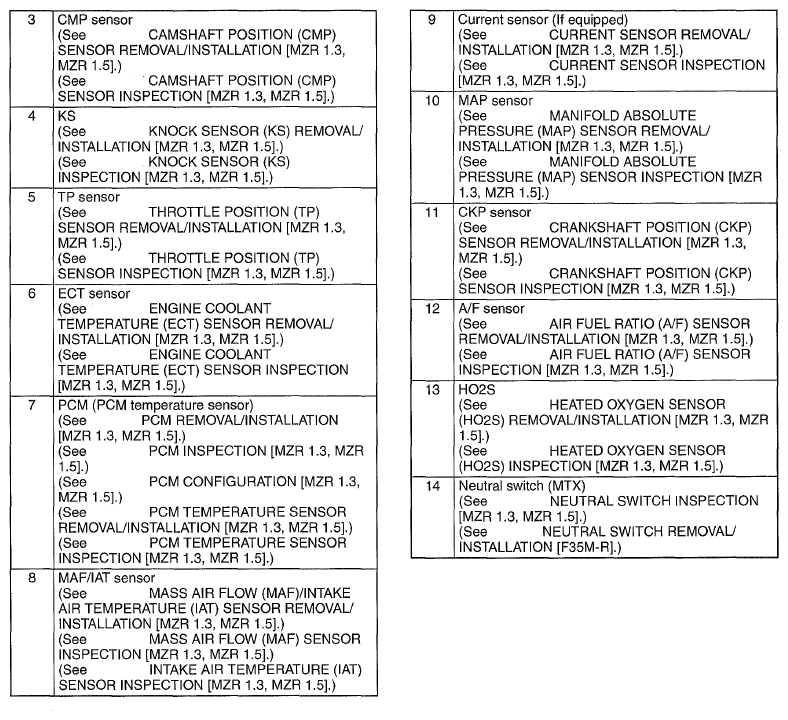

Fig 2: Engine Control System Components Location (2 Of 2)

G08107396
