Engine Control System Wiring Diagram

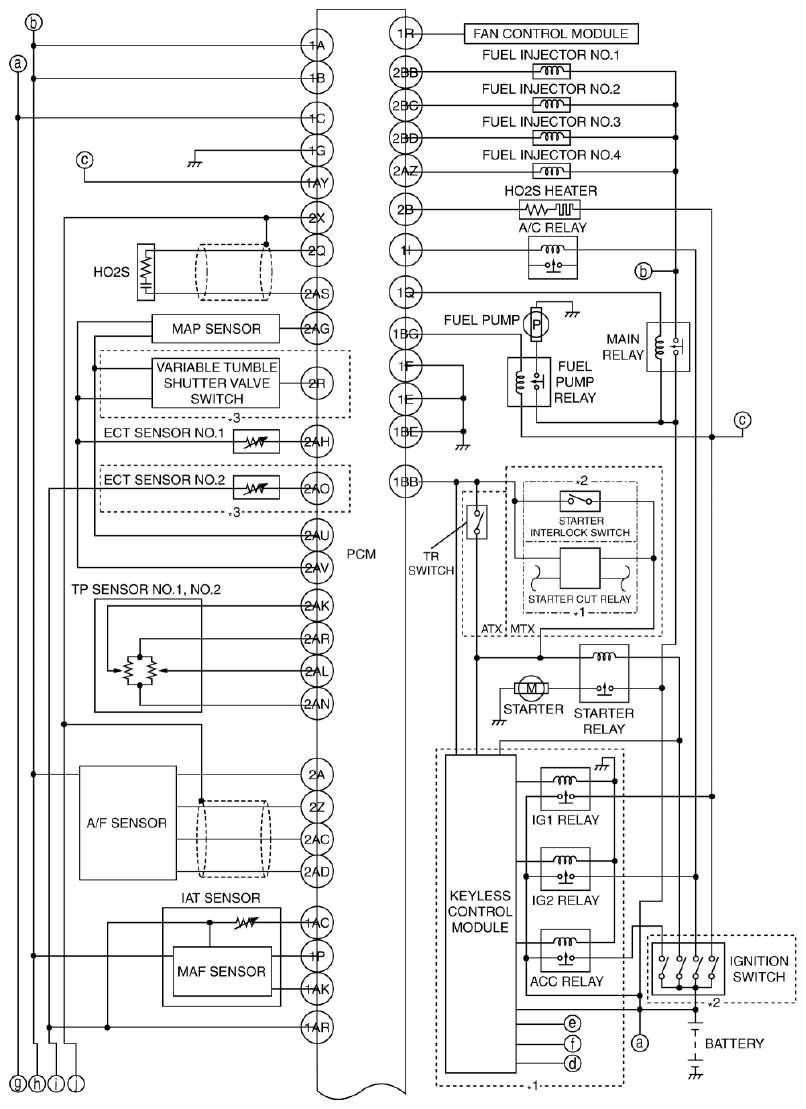

Fig 1: Engine Control System Wiring Diagram [MZR 2.0, MZR 2.5] (1 Of 2)

G08155366

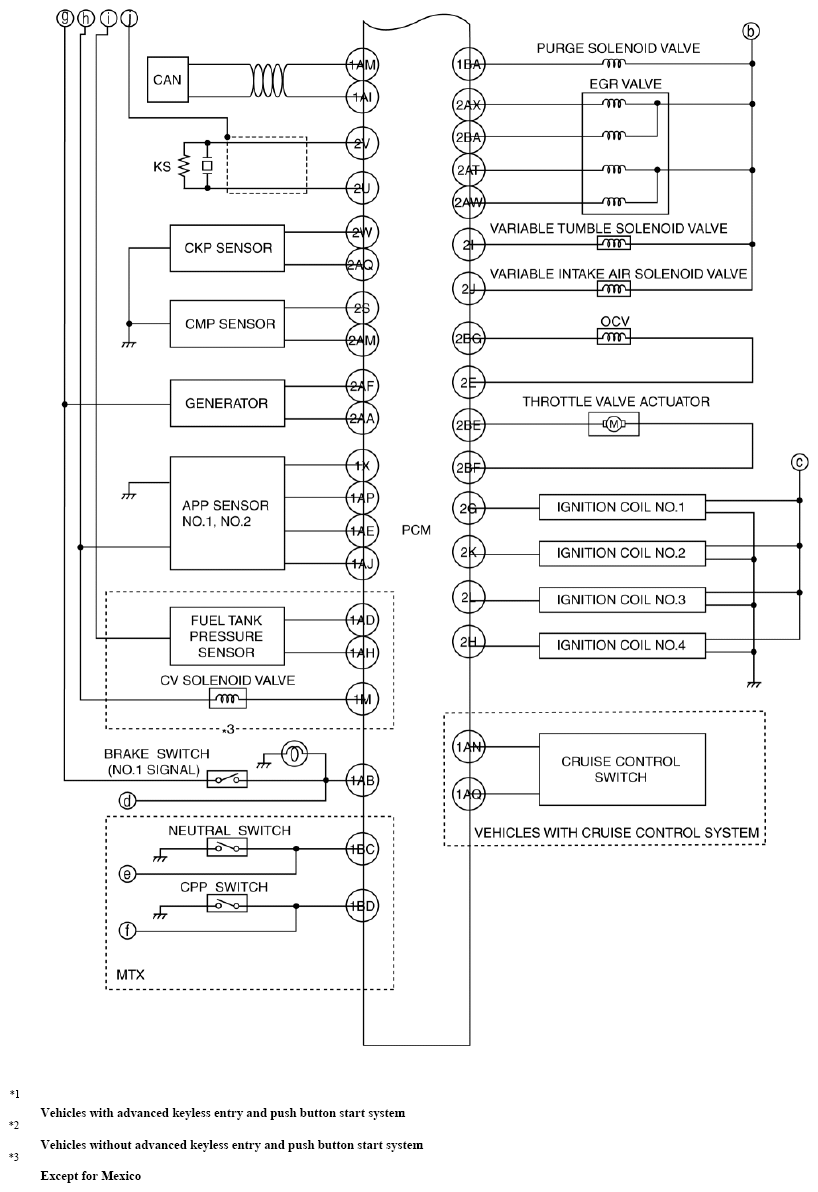

Fig 2: Engine Control System Wiring Diagram [MZR 2.0, MZR 2.5] (2 Of 2)

G08155367
