ECT Sensor No.2

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .)
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Disconnect the ECT sensor No.2 connector.
Remove the ECT sensor No.2 using the SST .

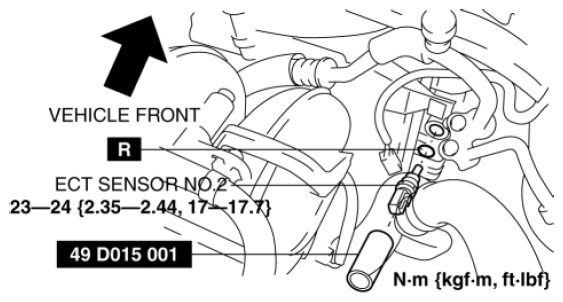

Fig 1: ECT Sensor No.2 And SST With Torque Specifications
NOTE:
- Wipe off any oil or engine coolant if it gets on the ECT sensor No.2 installation area.
Install in the reverse order of removal.
Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
