Headliner Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
3. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
8. Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
9. Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
11. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
12. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
13. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
14. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
15. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
16. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
17. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
18. Rear header trim (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
19. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
Disconnect the antenna feeder No.2.

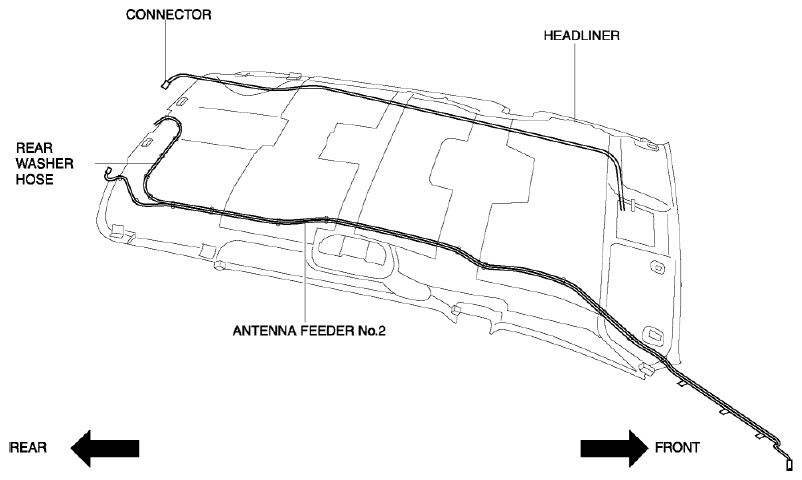

Fig 1: Identifying Antenna Feeder No.2, Rear Washer Hose, Connector And Headliner
Disconnect the rear washer hose.
Disconnect the connector.
Remove the fasteners.

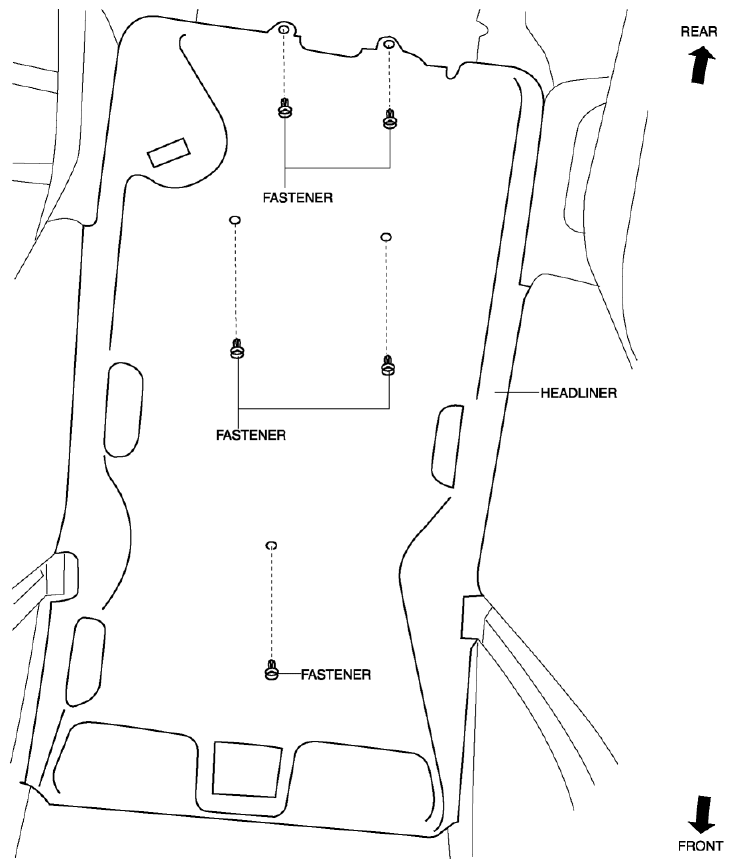

Fig 2: Identifying Headliner And Fasteners
Take the headliner out from the opened liftgate.
Install in the reverse order of removal.
