BCM Connector End View
BCM Connector End View

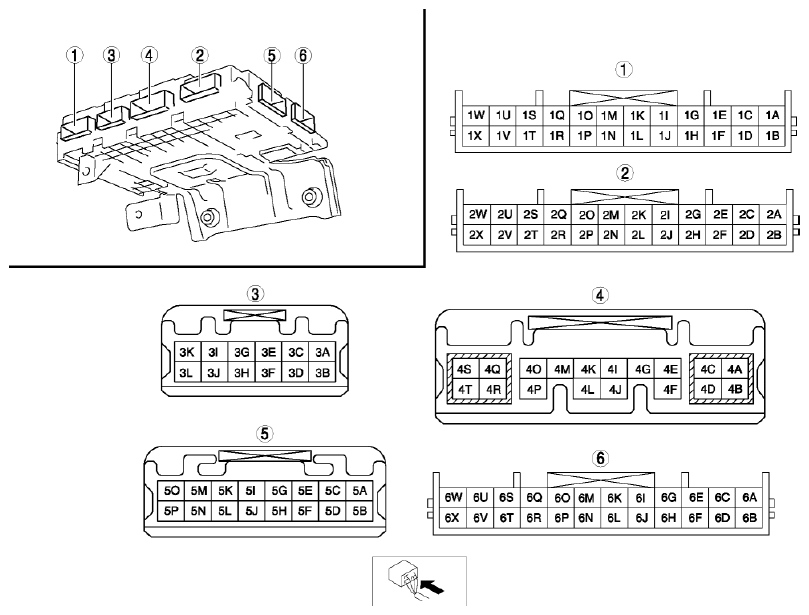

Fig 1: BCM Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
