Clock Spring Connector End View

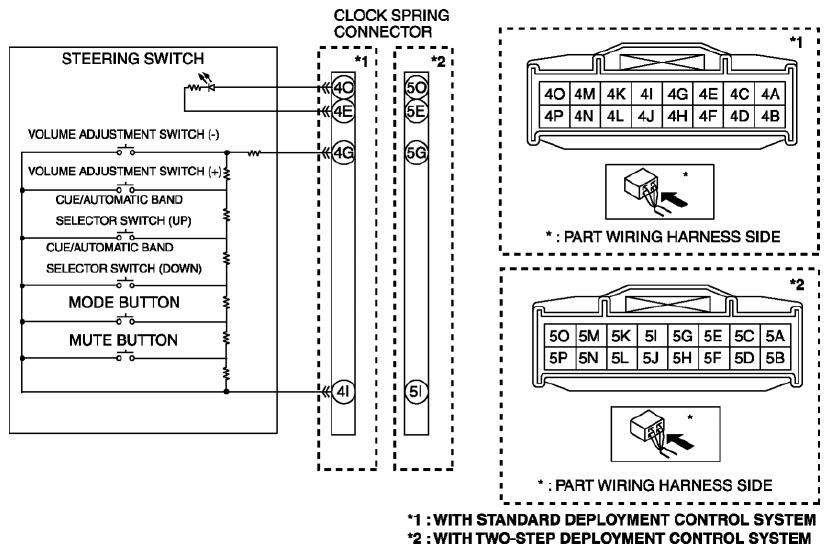

Fig 1: Clock Spring Connector End View
G08153477Courtesy of MAZDA MOTORS CORP.


Fig 1: Clock Spring Connector End View
G08150062Courtesy of MAZDA MOTORS CORP.
