Solar Radiation Sensor Connector End View
Solar Radiation Sensor Connector End View

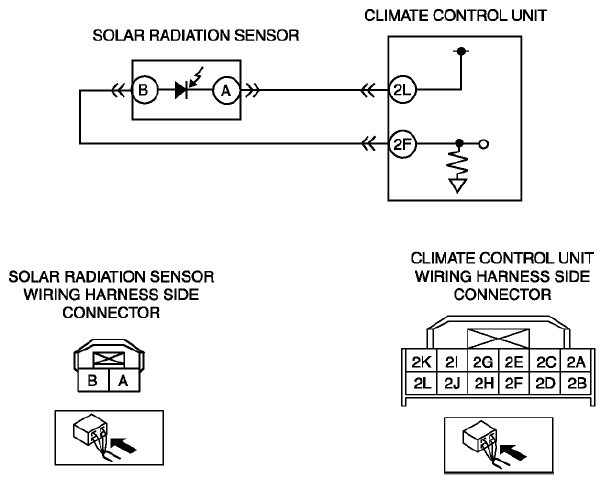

Fig 1: Solar Radiation Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
