TCM And AT Main Relay Connector End View

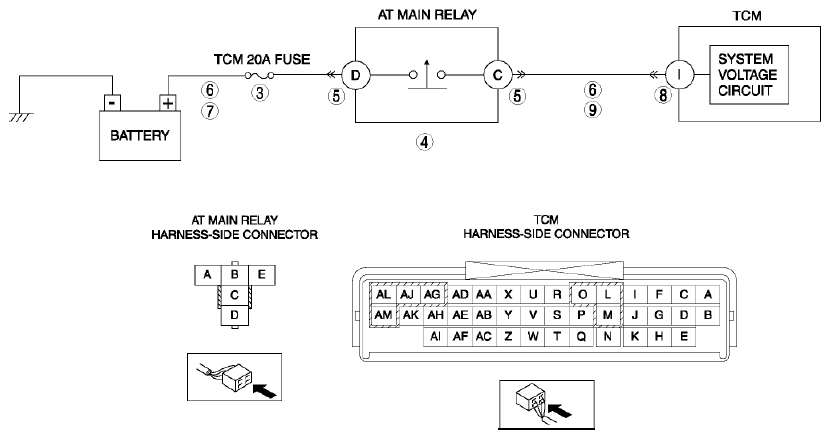

Fig 1: TCM And AT Main Relay Connector End View
G08150731Courtesy of MAZDA MOTORS CORP.
