Driver-Side Curtain Air Bag Module Connector End View
Driver-Side Curtain Air Bag Module Connector End View

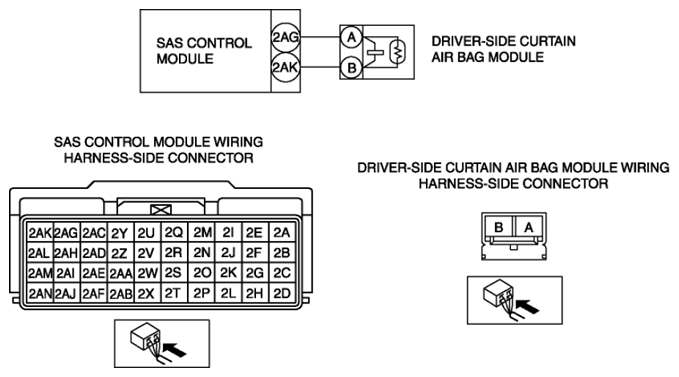

Fig 1: Driver-Side Curtain Air Bag Module Connector End View
Courtesy of MAZDA MOTORS CORP.

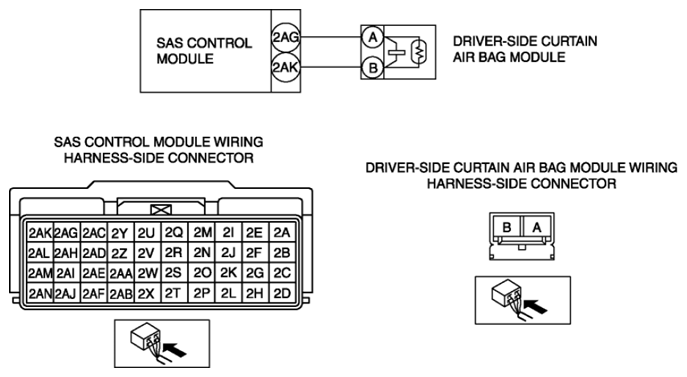

Fig 1: Driver-Side Curtain Air Bag Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
