Steering Gear And Linkage Assembly: Notes

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Assemble in the order indicated in the table.

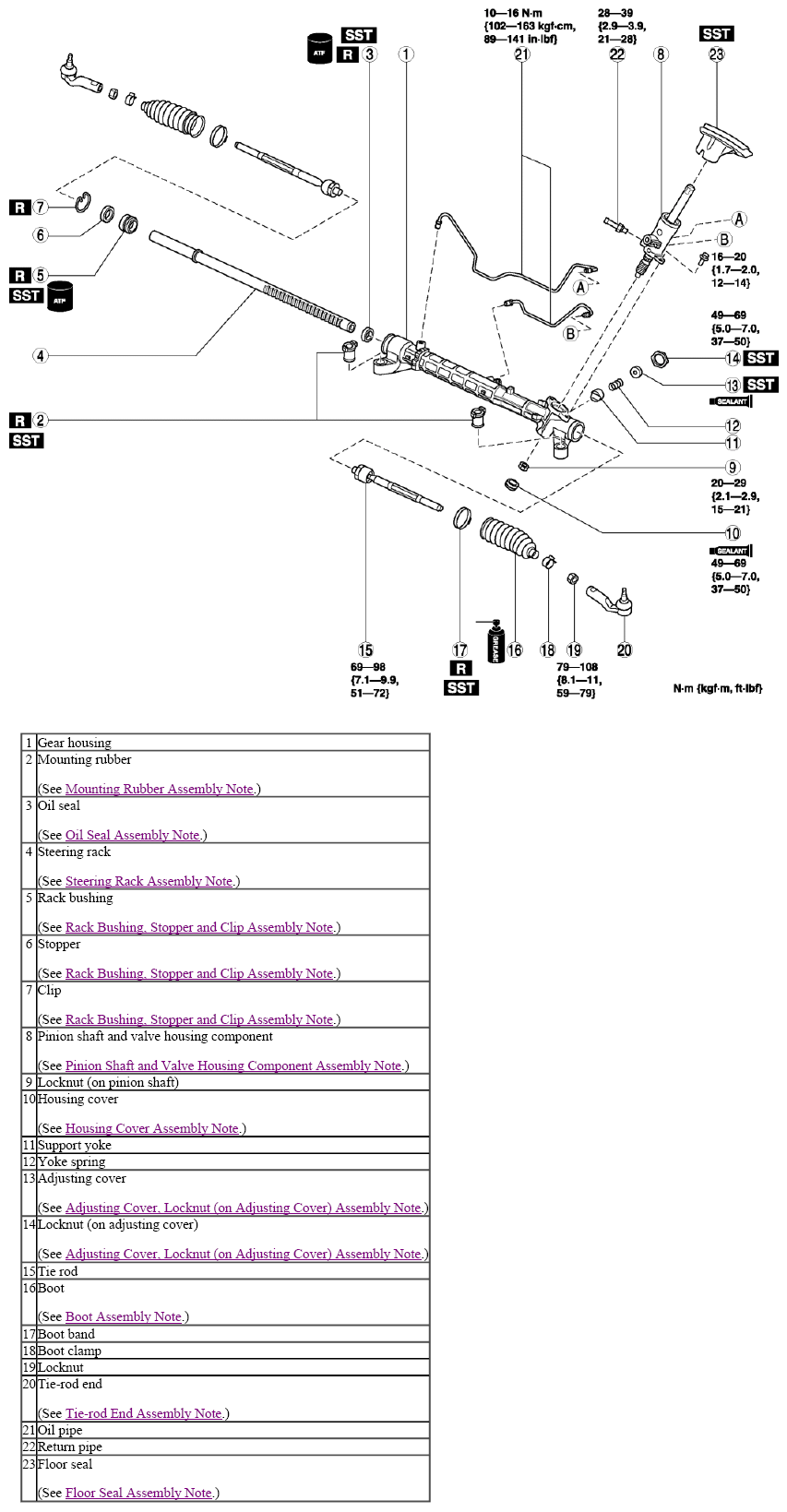

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications

G08152214
