Primary Shaft Components Assembly: Notes

  1. Assemble in the order indicated in the table.

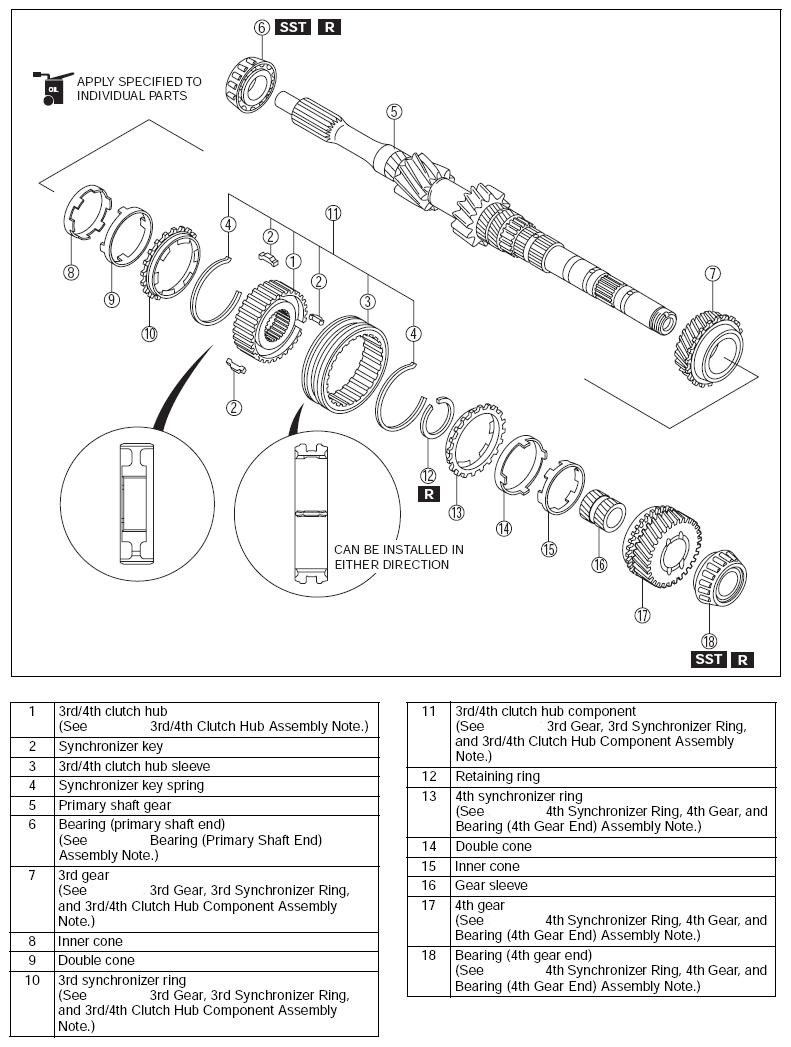

    Fig 1: Identifying Primary Shaft Components
    G08803702
