Home › Mazda › 2012 › 5 Sport, Standard Trans › Repair and Diagnosis › Transmission › Manual Trans › Manual Transaxle - Overhaul [G66M-R) › Secondary Shaft Components Assembly › Notes

Secondary Shaft Components Assembly: Notes

  1. Assemble in the order indicated in the table.

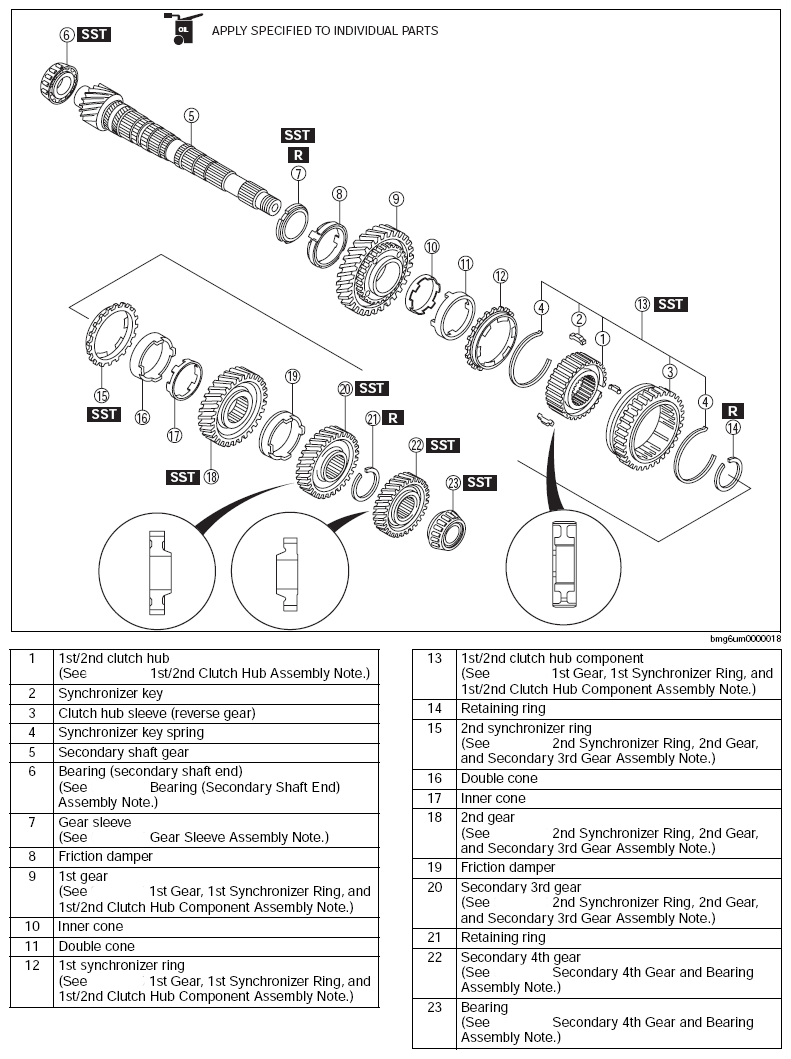

    Fig 1: Identifying Secondary Shaft Components
    G08803720
