Secondary Shaft Components Disassembly: Notes

  1. Disassemble in the order indicated in the table.

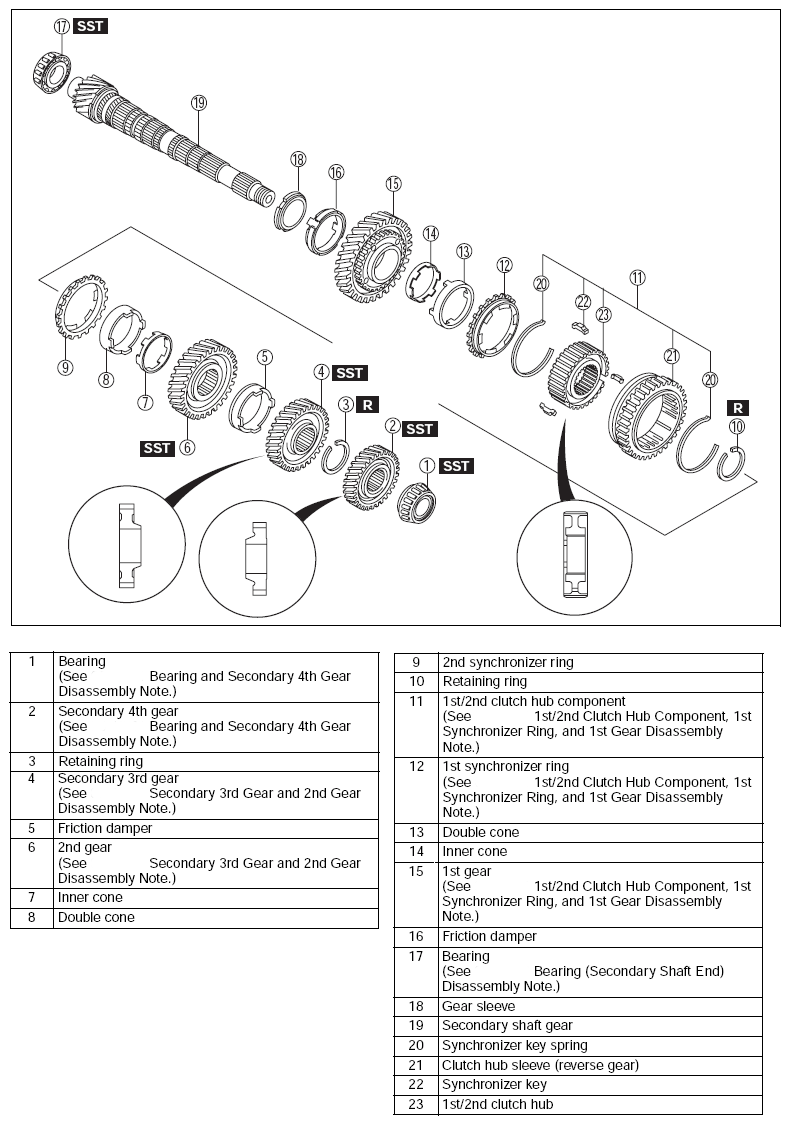

    Fig 1: Identifying Secondary Shaft Components
    G08803711
