Starter Interlock Switch Removal/Installation

Disconnect the negative battery cable.
Disconnect the starter interlock switch connector.
Remove the starter interlock switch from the pedal bracket.

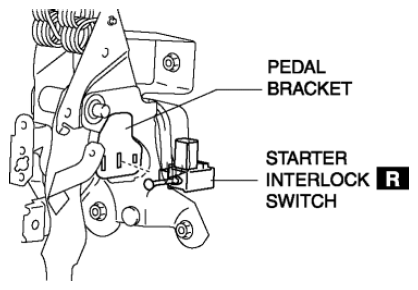

Fig 1: Removing Starter Interlock Switch From Pedal Bracket
Insert a new starter interlock switch into the pedal bracket hole in the direction indicated by arrow A.

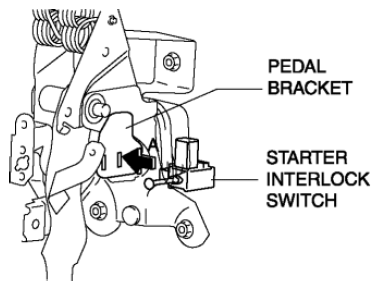

Fig 2: Inserting Starter Interlock Switch Into Pedal Bracket Hole
Slide the starter interlock switch pressing it in the direction indicated by arrow B until it is locked.

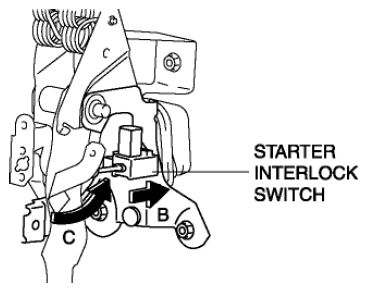

Fig 3: Sliding Starter Interlock Switch
Fully depress the clutch pedal in the direction of arrow C, and verify that a click sound from the starter interlock switch is heard.
Install in the reverse order of removal.
Fully depress the clutch pedal, and verify that the engine starts.
