Guide Disassembly Note
Guide Disassembly Note
Insert a hand to the back side of the sunroof frame, raise the decoration link lock and remove it.

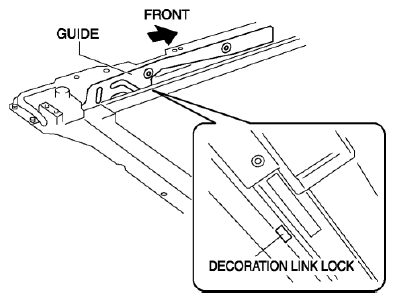

Fig 1: Raising Decoration Link Lock
Slide the guide to the rear of the sunroof frame, and remove the guide and decoration link as a single unit.
