Control System

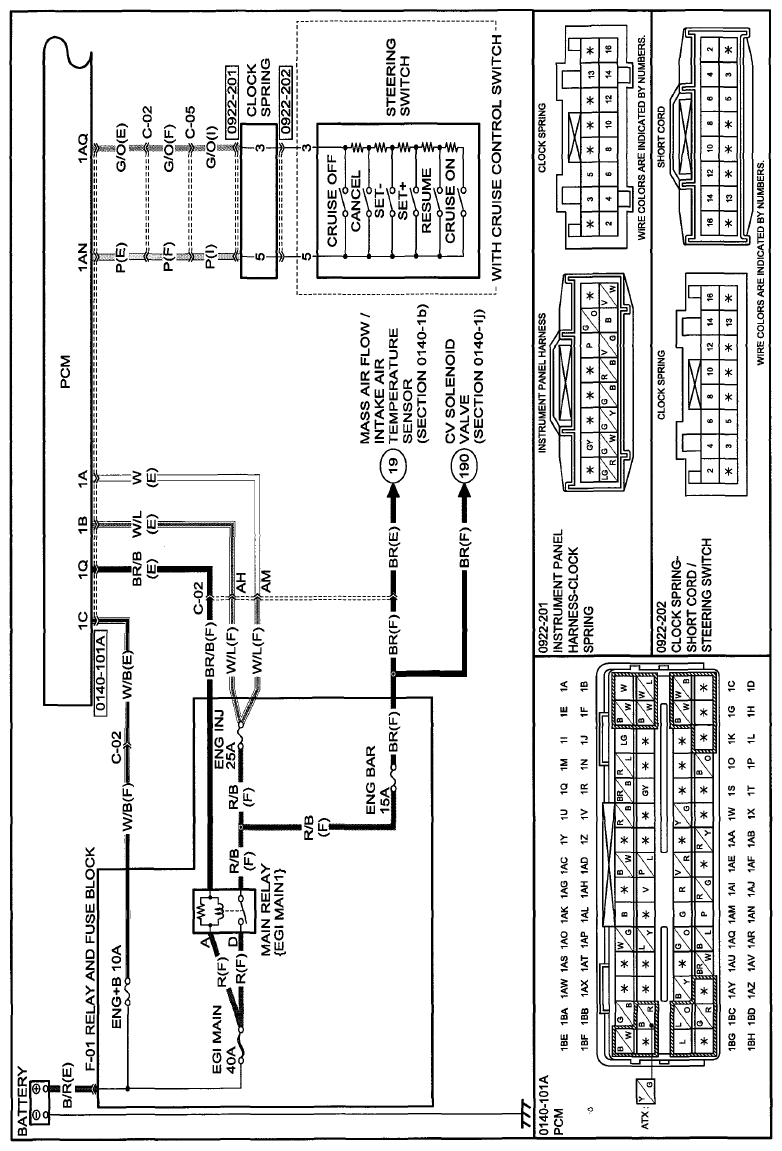

Fig 1: Control System Wiring Diagram (0140-1A; 1 Of 2)

G11603256

Courtesy of MAZDA MOTORS CORP.

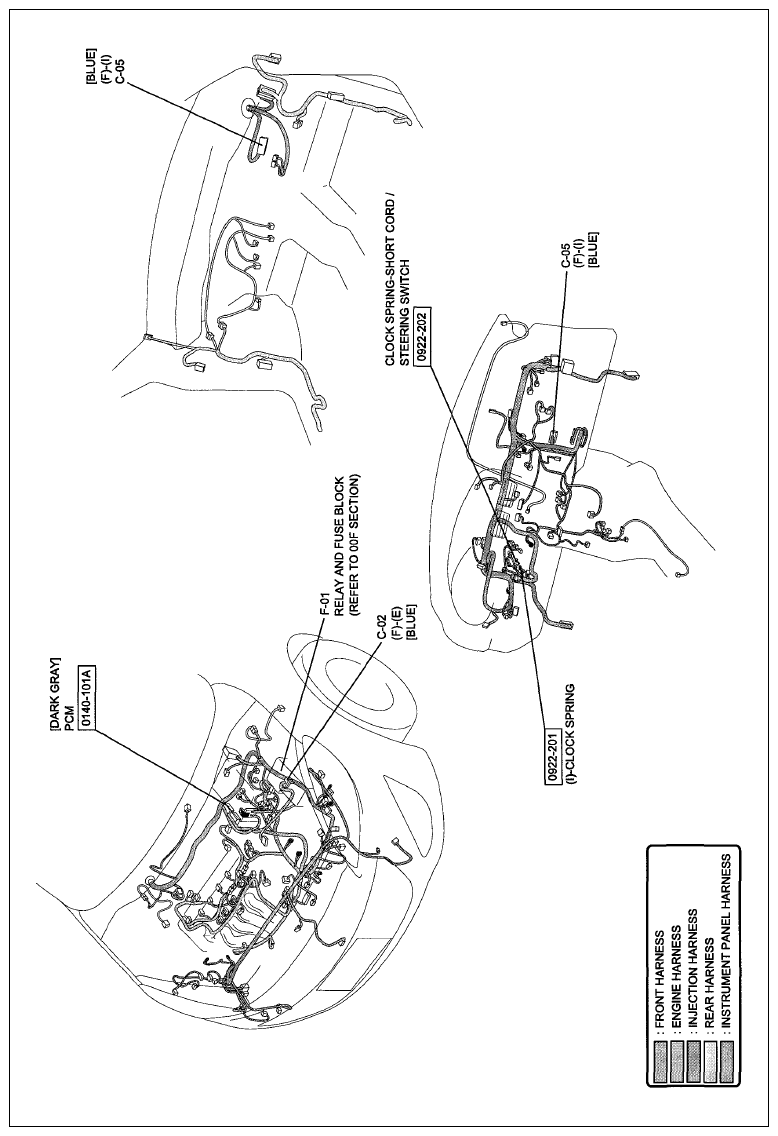

Fig 2: Control System Wiring Diagram (0140-1A; 2 Of 2)

G11603257

Courtesy of MAZDA MOTORS CORP.

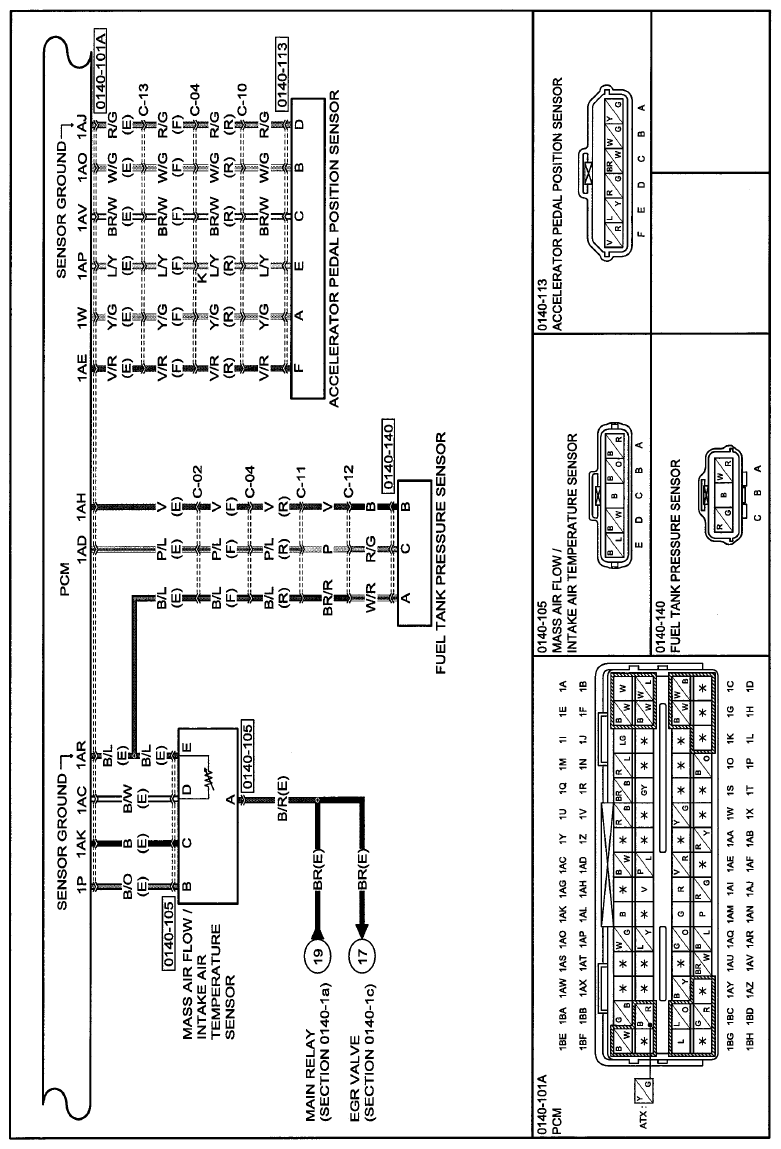

Fig 3: Control System Wiring Diagram (0140-1B; 1 Of 2)

G11603258

Courtesy of MAZDA MOTORS CORP.

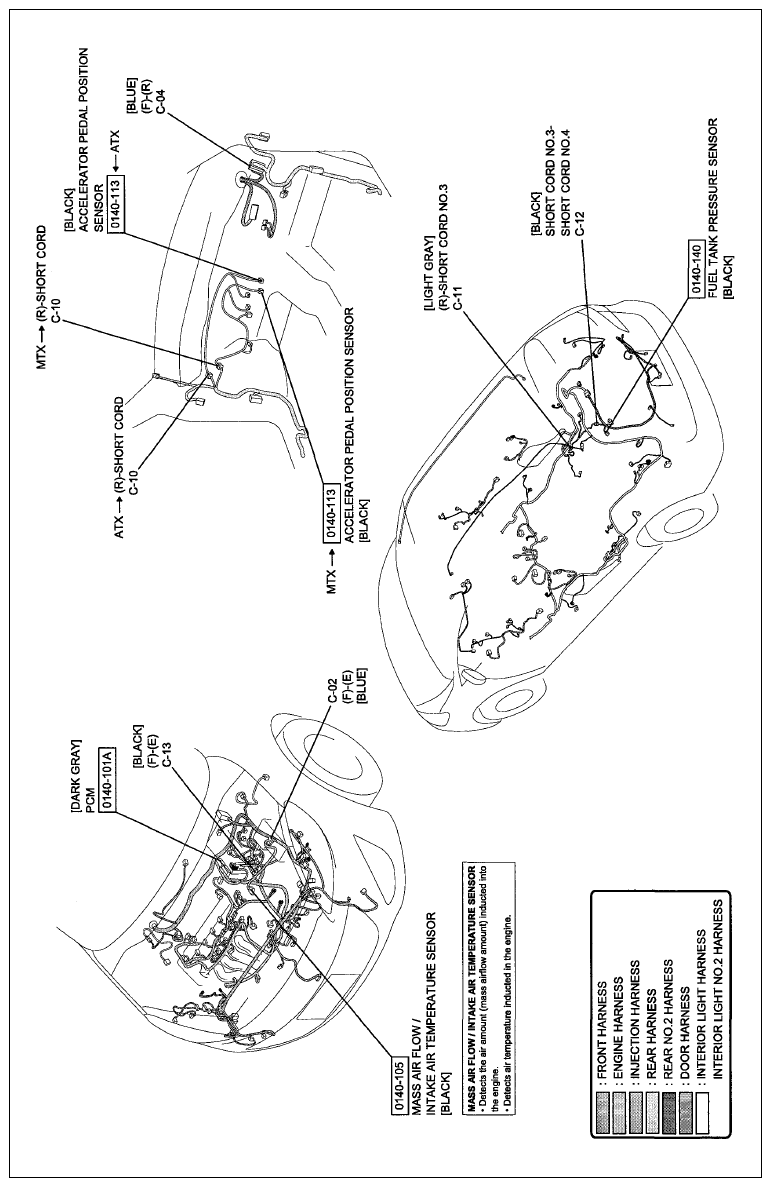

Fig 4: Control System Wiring Diagram (0140-1B; 2 Of 2)

G11603259

Courtesy of MAZDA MOTORS CORP.

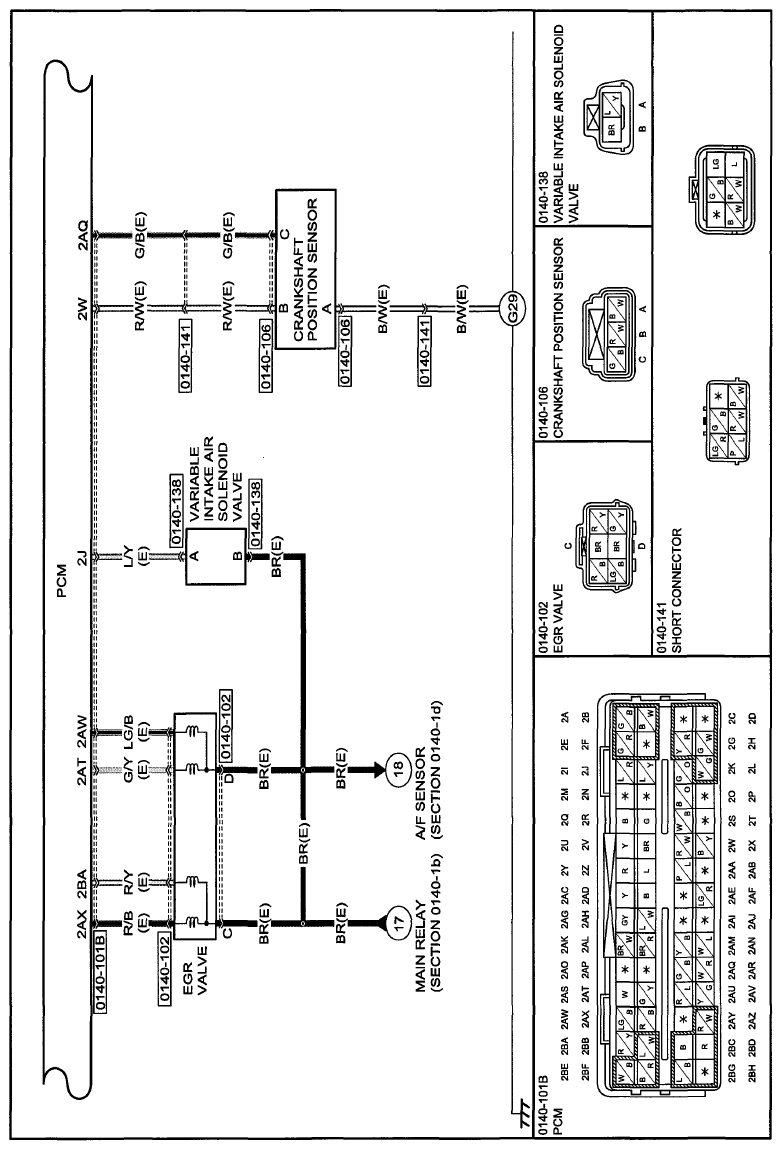

Fig 5: Control System Wiring Diagram (0140-1C; 1 Of 2)

G11603260

Courtesy of MAZDA MOTORS CORP.

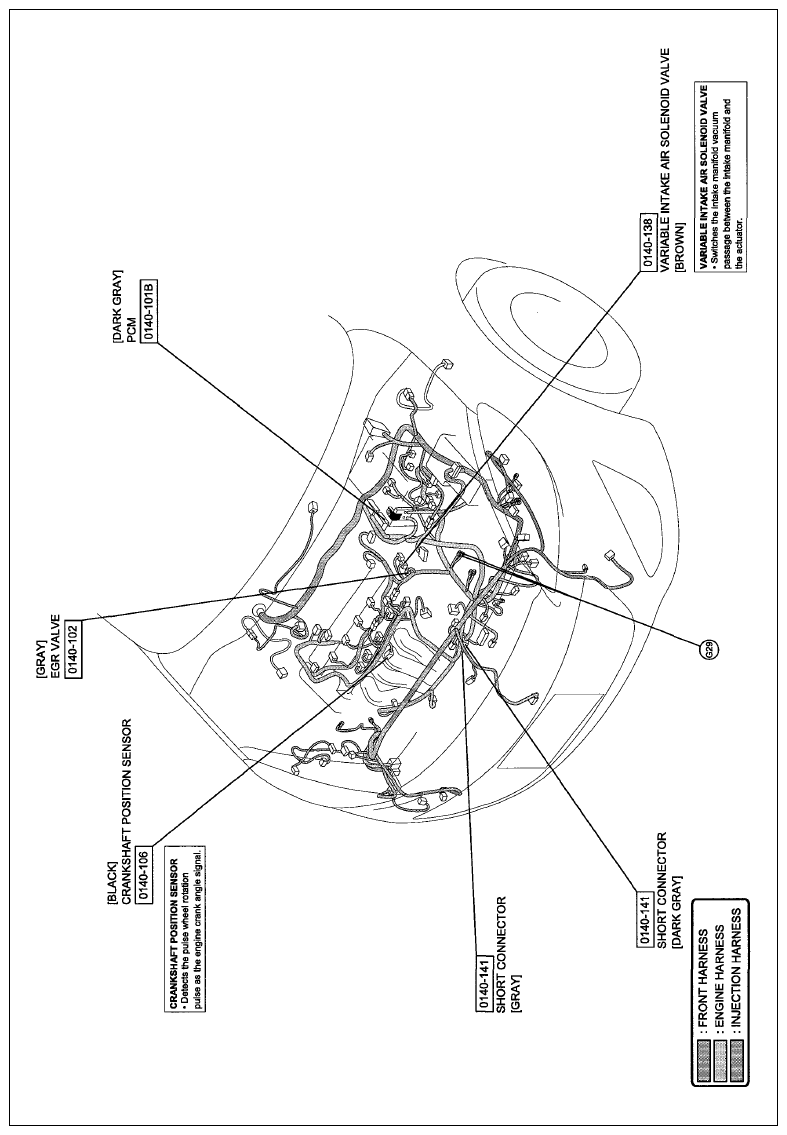

Fig 6: Control System Wiring Diagram (0140-1C; 2 Of 2)

G11603261

Courtesy of MAZDA MOTORS CORP.

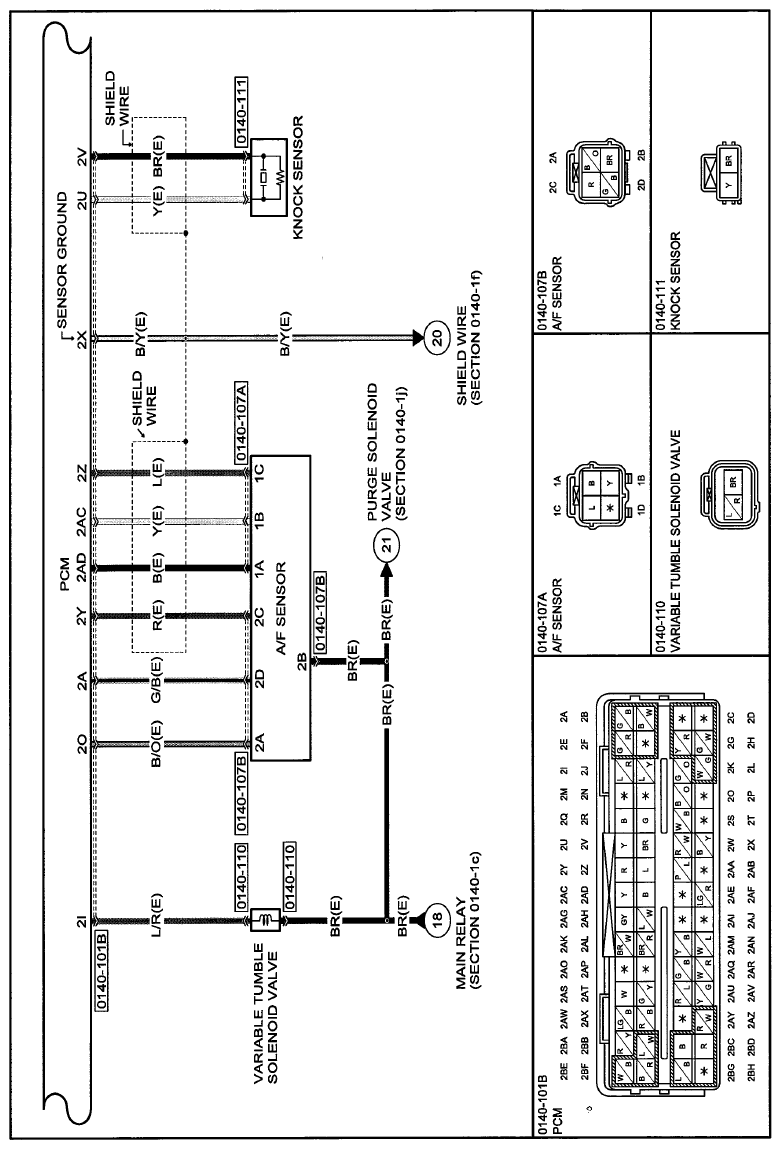

Fig 7: Control System Wiring Diagram (0140-1D; 1 Of 2)

G11603262

Courtesy of MAZDA MOTORS CORP.

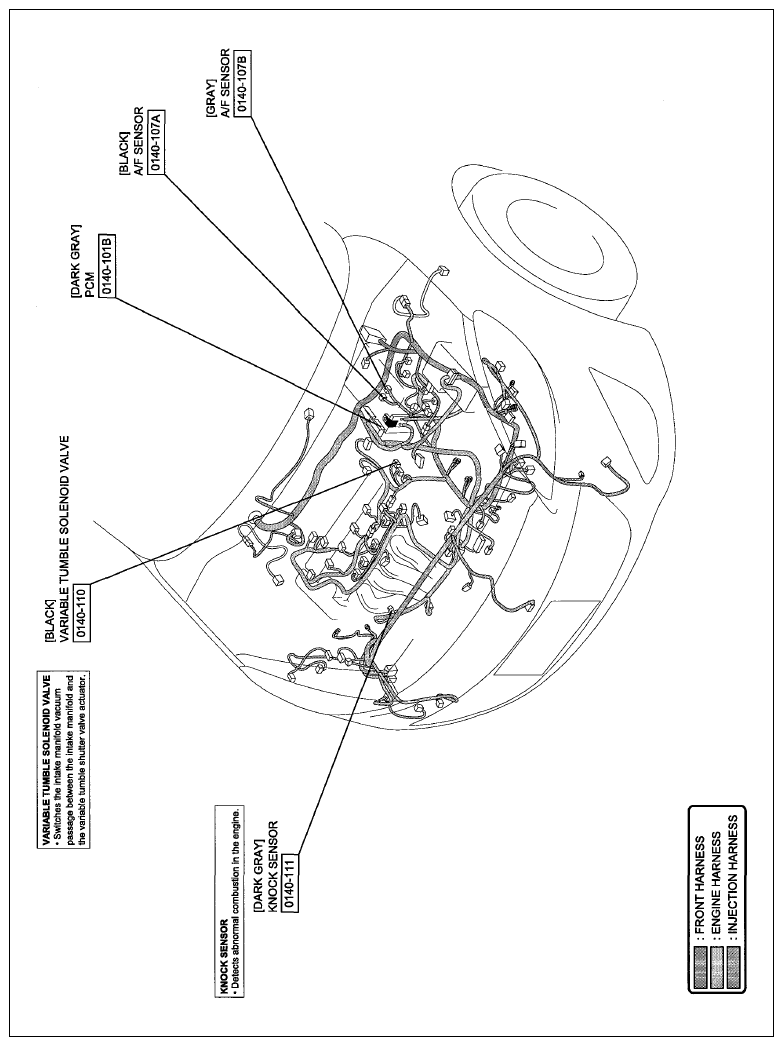

Fig 8: Control System Wiring Diagram (0140-1D; 2 Of 2)

G11603263

Courtesy of MAZDA MOTORS CORP.

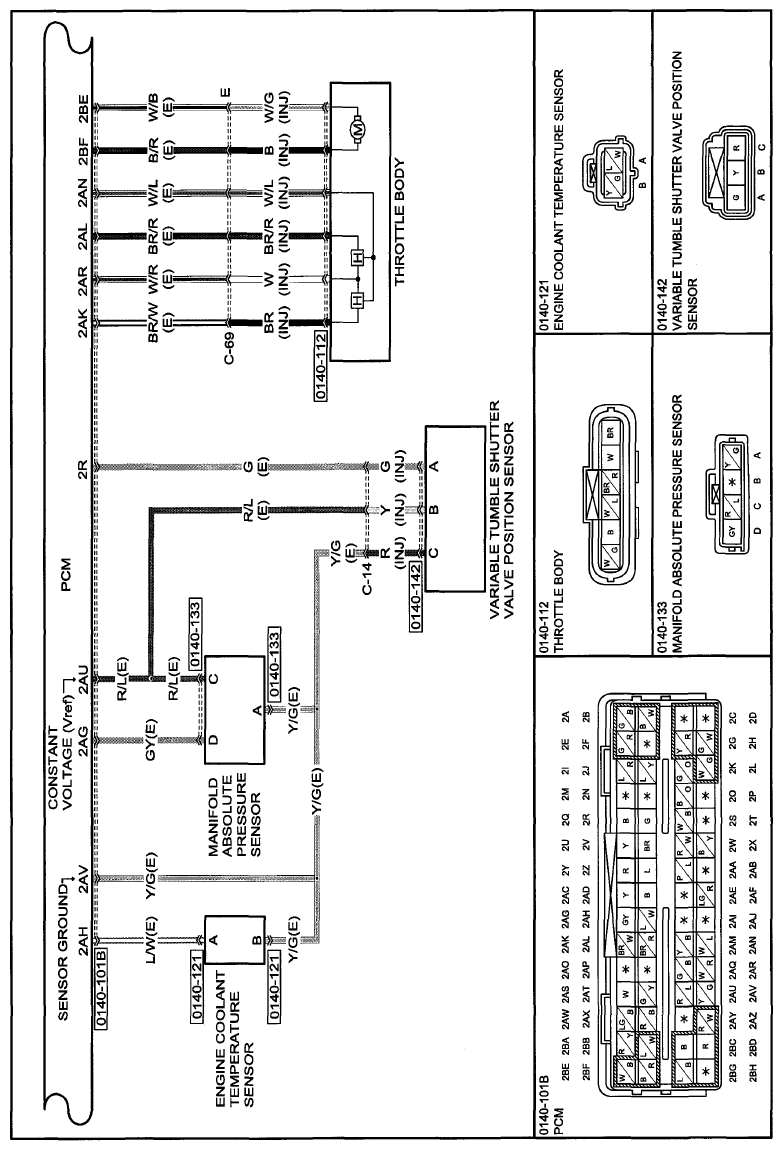

Fig 9: Control System Wiring Diagram (0140-1E; 1 Of 2)

G11603264

Courtesy of MAZDA MOTORS CORP.

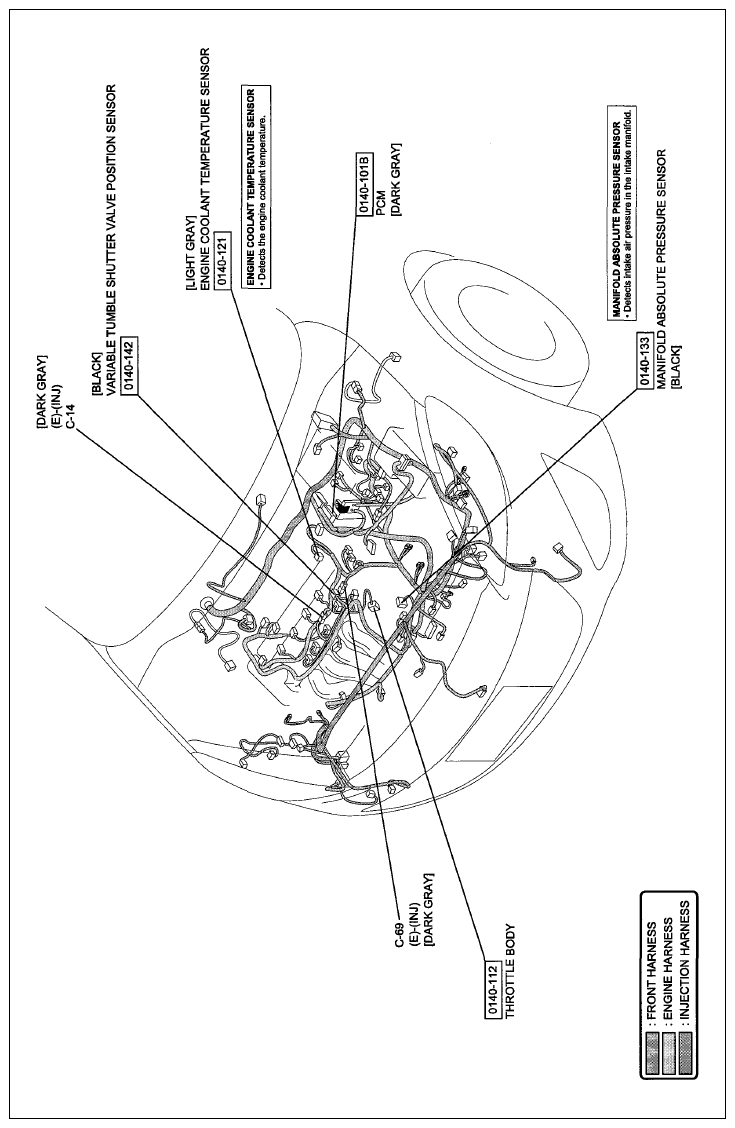

Fig 10: Control System Wiring Diagram (0140-1E; 2 Of 2)

G11603265

Courtesy of MAZDA MOTORS CORP.

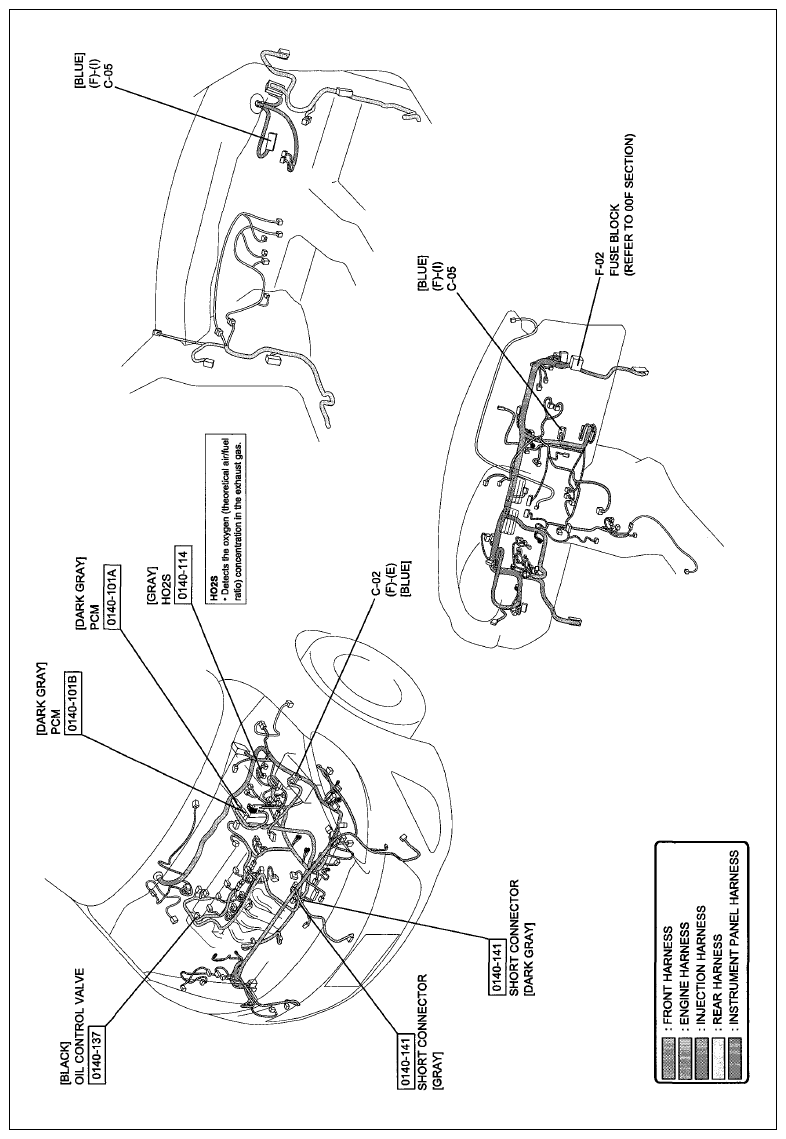

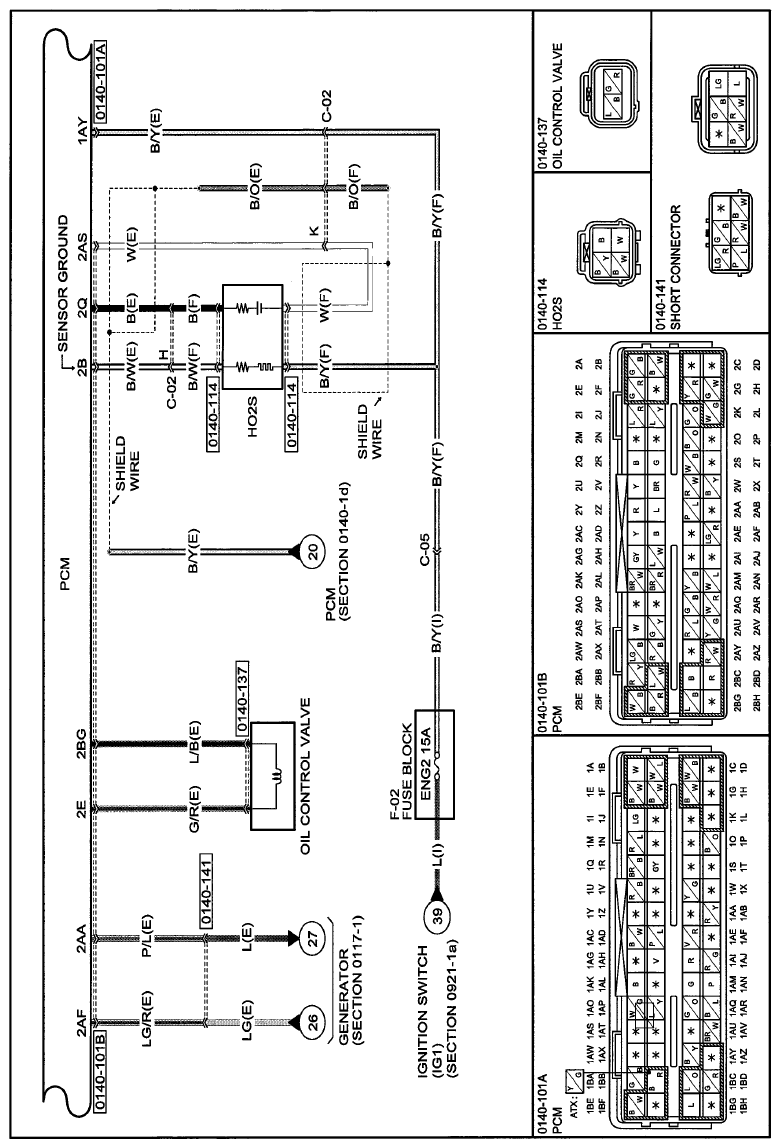

Fig 11: Control System Wiring Diagram (0140-1F; 1 Of 2)

G11603266

Courtesy of MAZDA MOTORS CORP.

Fig 12: Control System Wiring Diagram (0140-1F; 2 Of 2)

G11603267

Courtesy of MAZDA MOTORS CORP.

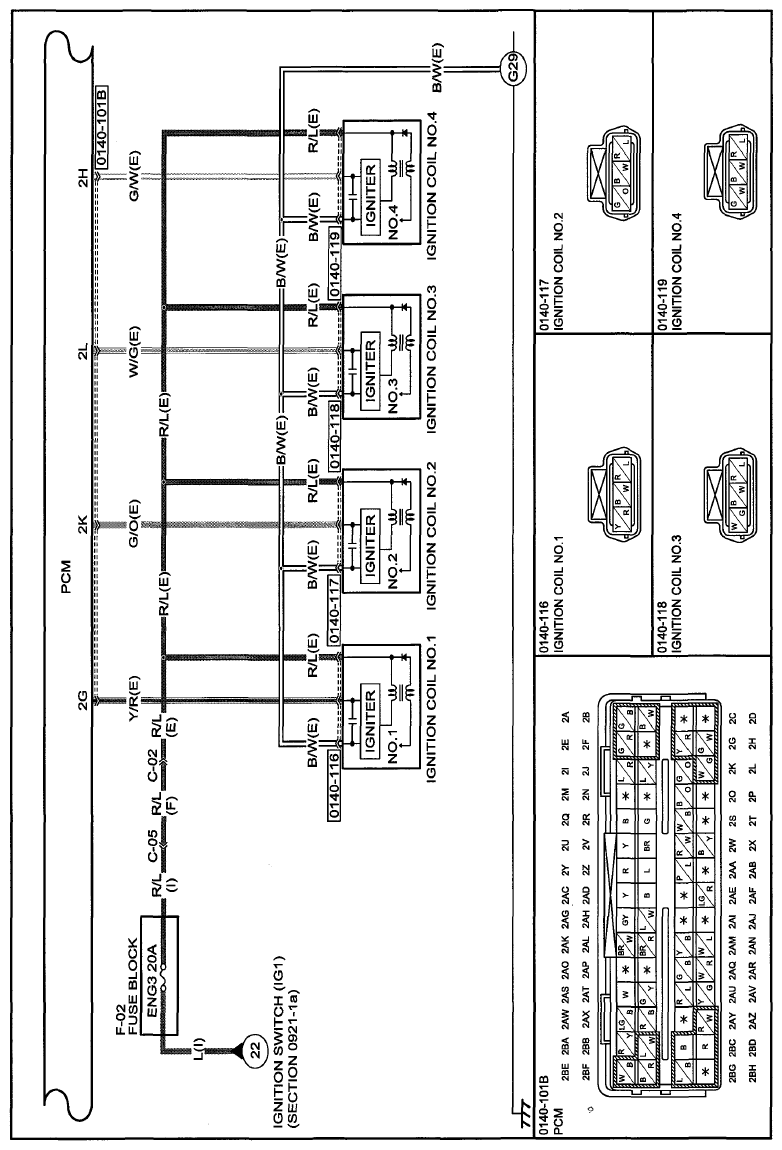

Fig 13: Control System Wiring Diagram (0140-1G; 1 Of 2)

G11603268

Courtesy of MAZDA MOTORS CORP.

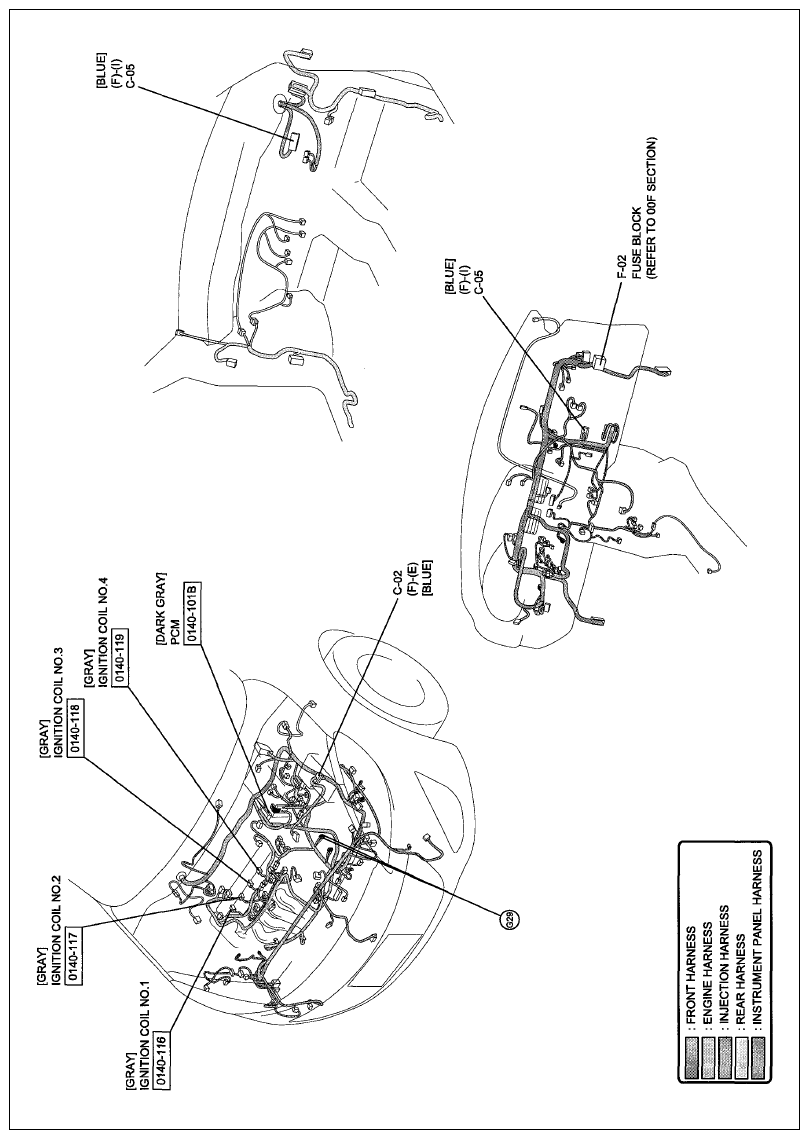

Fig 14: Control System Wiring Diagram (0140-1G; 2 Of 2)

G11603269

Courtesy of MAZDA MOTORS CORP.

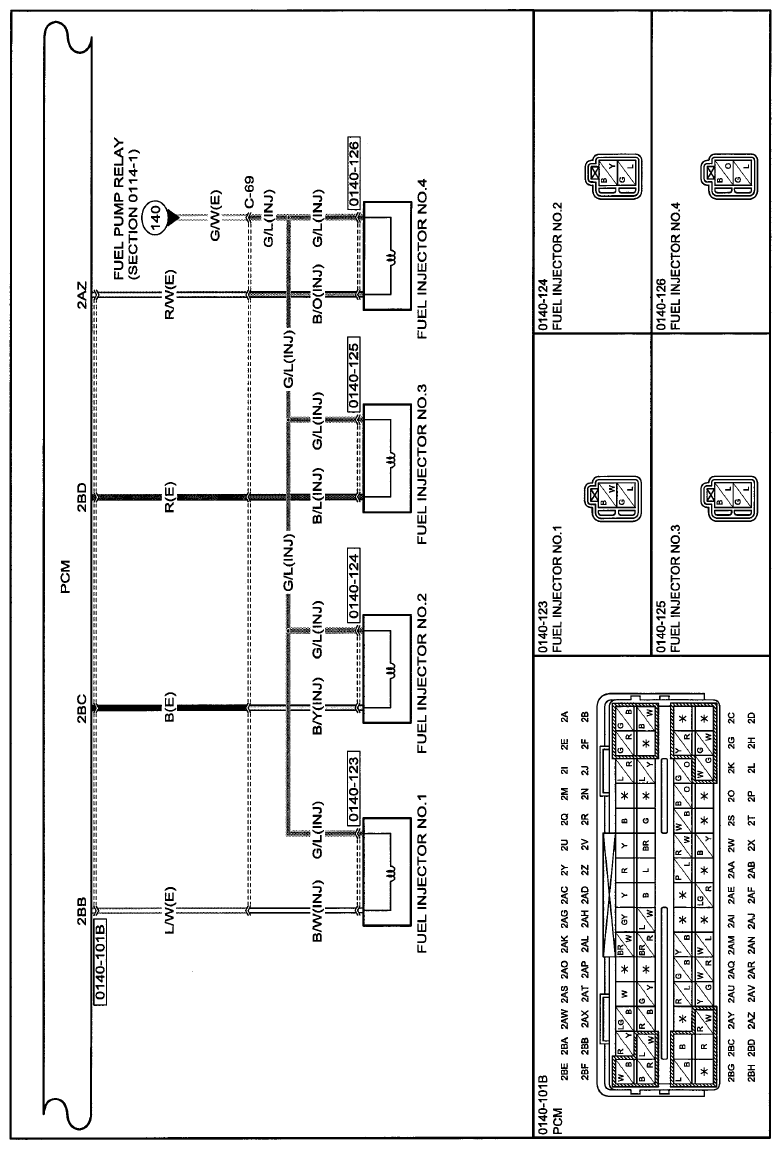

Fig 15: Control System Wiring Diagram (0140-1H; 1 Of 2)

G11603270

Courtesy of MAZDA MOTORS CORP.

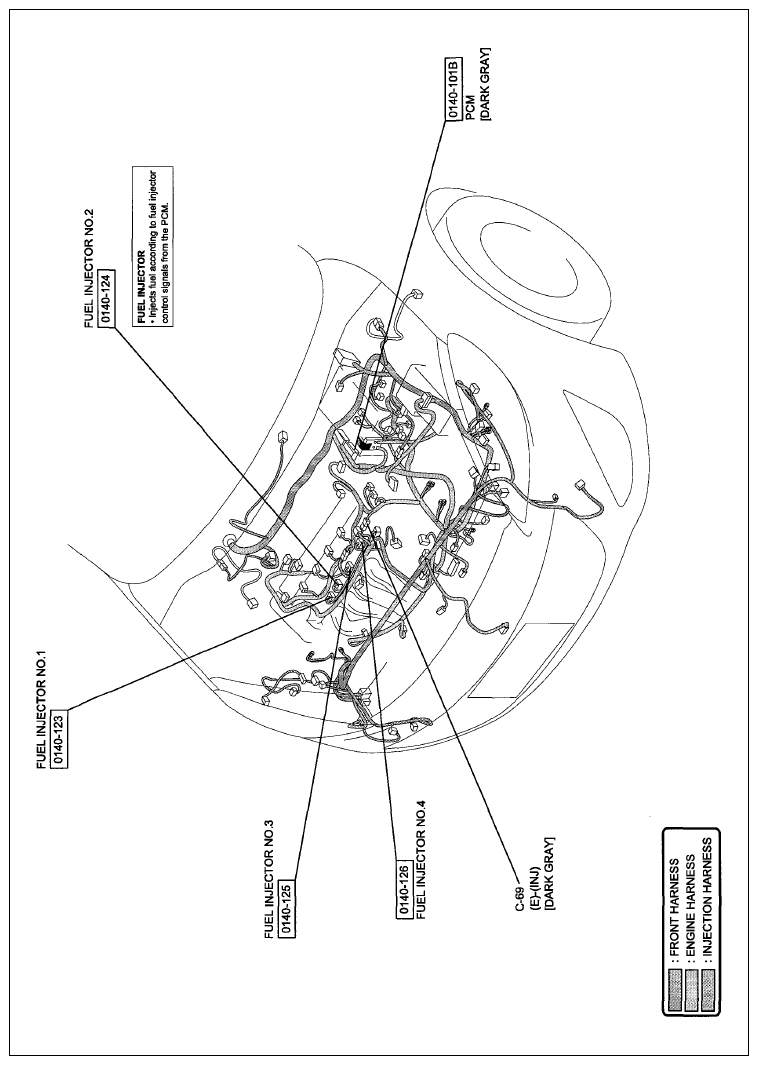

Fig 16: Control System Wiring Diagram (0140-1H; 2 Of 2)

G11603271

Courtesy of MAZDA MOTORS CORP.

Fig 17: Control System Wiring Diagram (0140-1I; 1 Of 2)

G11603272

Courtesy of MAZDA MOTORS CORP.

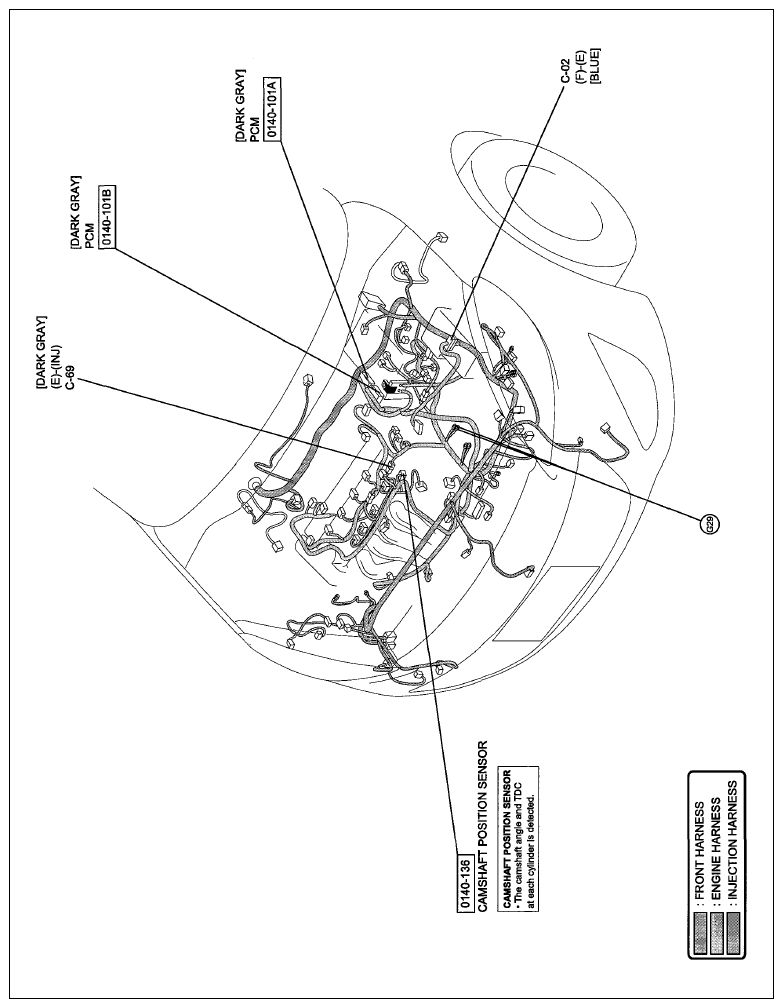

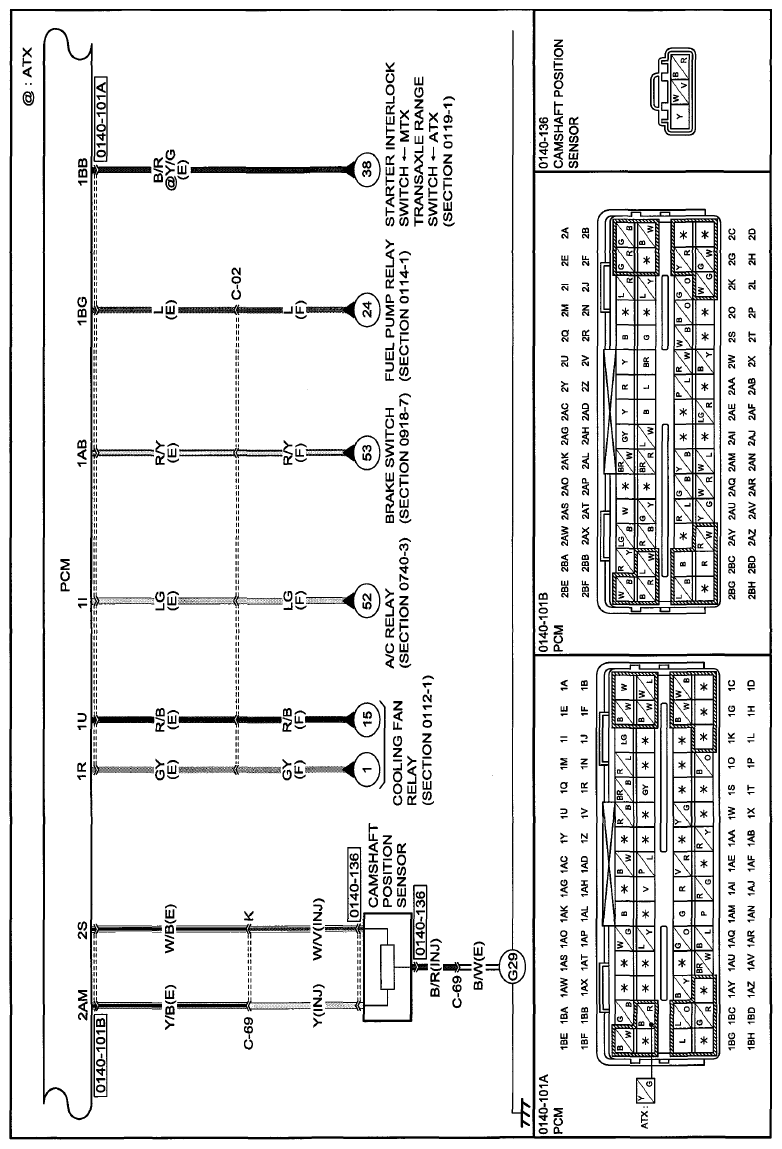

Fig 18: Control System Wiring Diagram (0140-1I; 2 Of 2)

G11603273

Courtesy of MAZDA MOTORS CORP.

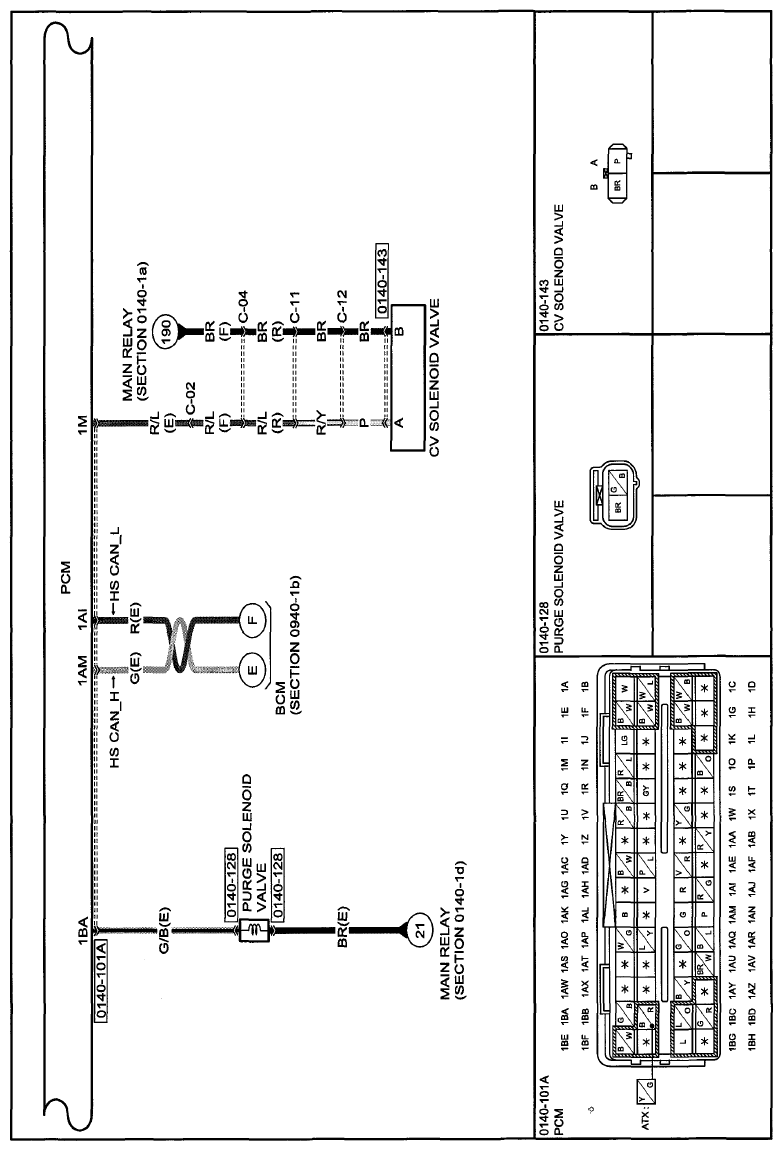

Fig 19: Control System Wiring Diagram (0140-1J; 1 Of 2)

G11603274

Courtesy of MAZDA MOTORS CORP.

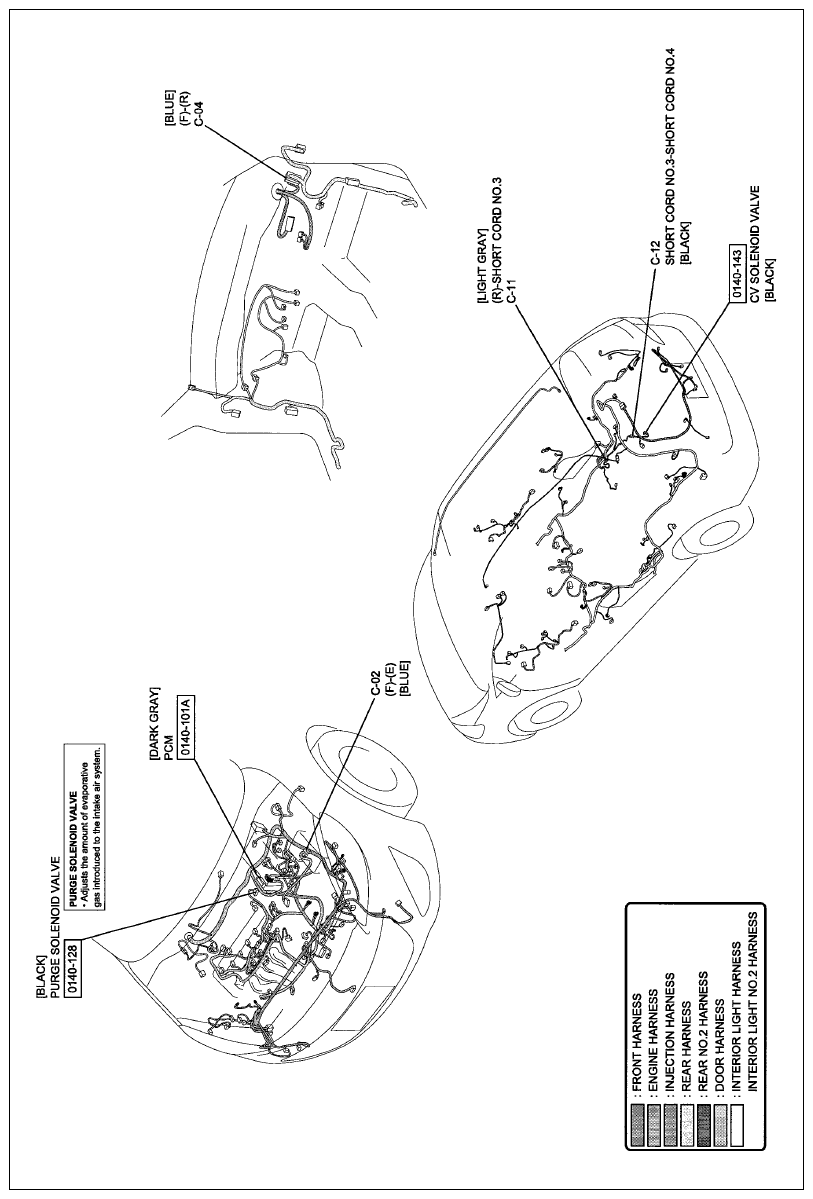

Fig 20: Control System Wiring Diagram (0140-1J; 2 Of 2)

G11603275

Courtesy of MAZDA MOTORS CORP.

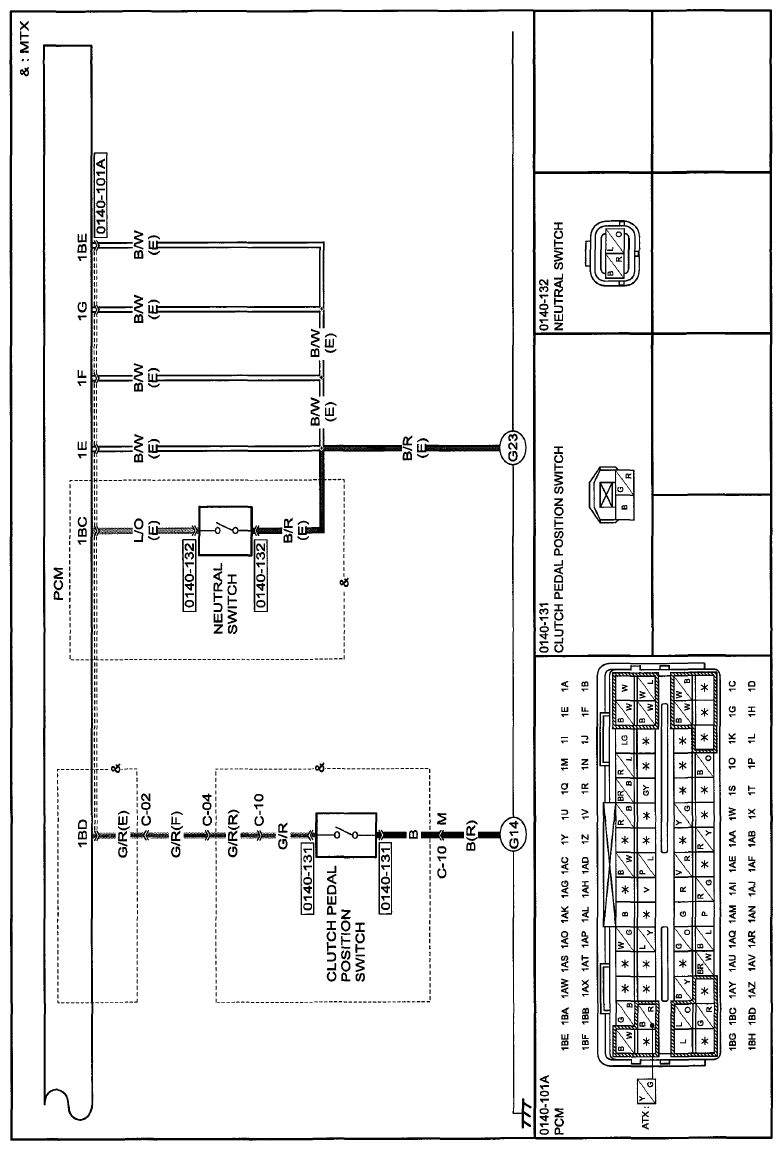

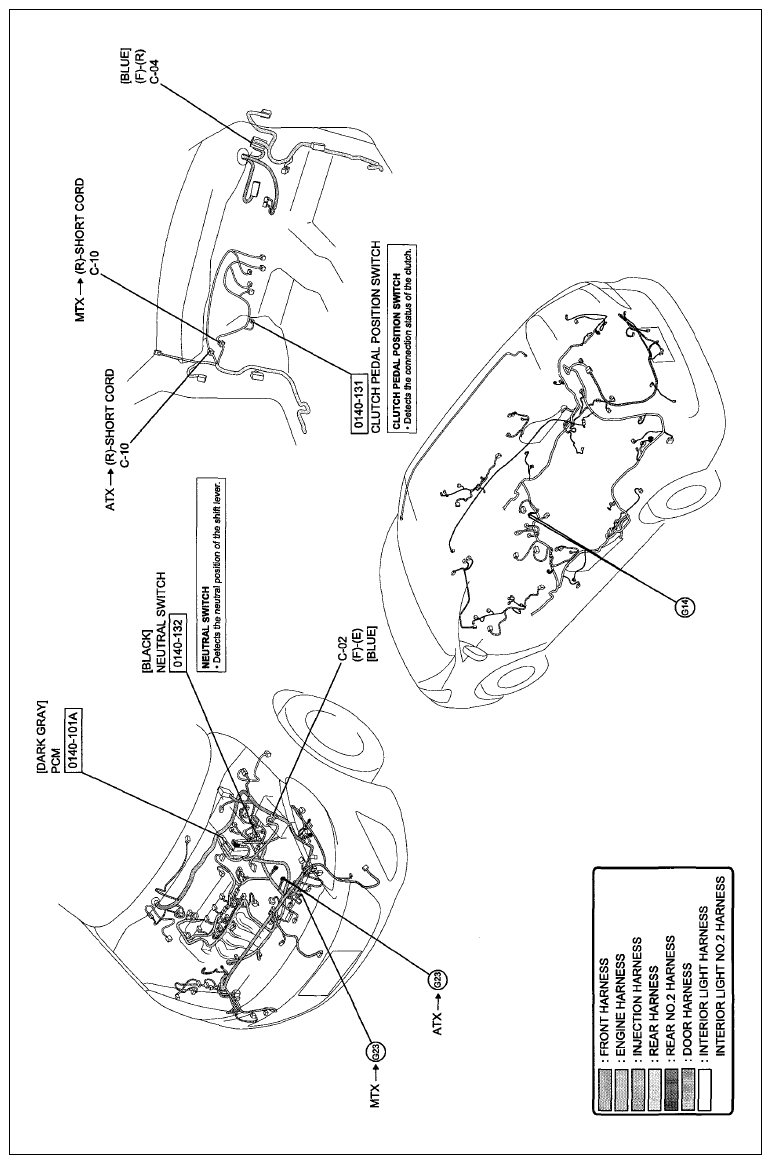

Fig 21: Control System Wiring Diagram (0140-1K; 1 Of 2)

G11603276

Courtesy of MAZDA MOTORS CORP.

Fig 22: Control System Wiring Diagram (0140-1K; 2 Of 2)

G11603277

Courtesy of MAZDA MOTORS CORP.
