Accessory Socket Removal/Installation: Front

Disconnect the negative battery cable.
Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

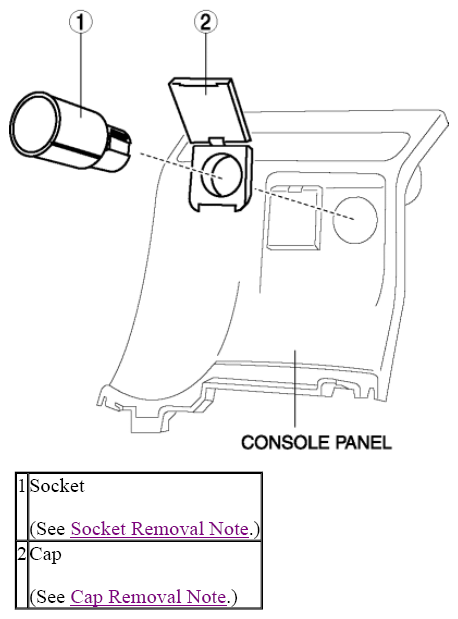

Fig 1: Identifying Front Accessory Socket Removal Order

G08153485

1	Socket (See SOCKET REMOVAL NOTE .)
2	Cap (See CAP REMOVAL NOTE .)

Install in the reverse order of removal.
