Accessory Socket Removal/Installation
›
Socket Removal Note
Socket Removal Note
Remove the socket in the direction of arrow (2) shown in the figure while opening the cap in the direction of arrow (1) using a tape-wrapped fastener remover.

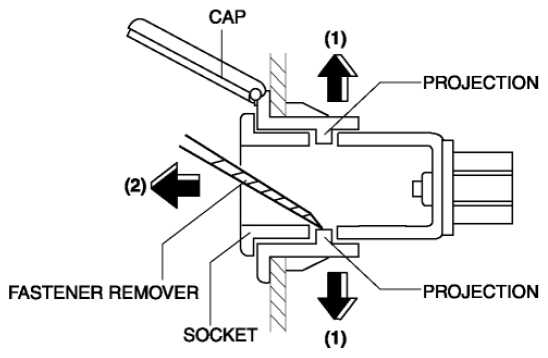

Fig 1: Identifying Socket Removing Direction And Cap Opening Direction
