Bluetooth UNIT REMOVAL/INSTALLATION

Disconnect the negative battery cable.
Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
11. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
12. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
13. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
14. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
Remove the nut.

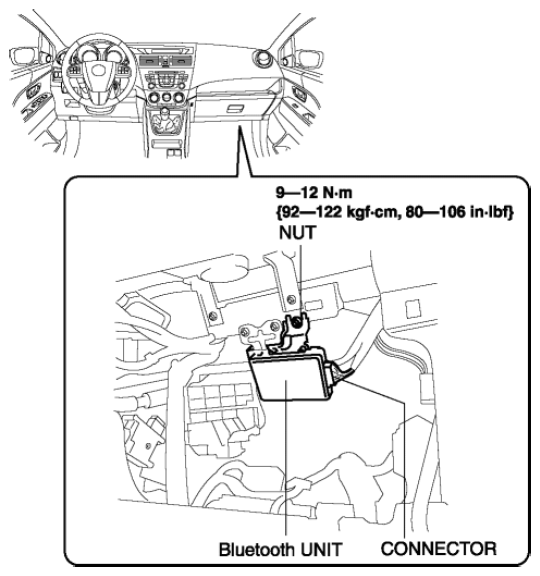

Fig 1: Bluetooth Unit, Connector And Nut With Torque Specifications
Disconnect the connector.
Remove the Bluetooth unit.
Install in the reverse order of removal.
