Microphone Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
2. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
Remove the microphone in the direction of the arrow (2) shown in the figure while pressing the microphone tabs in the direction of the arrow (1).

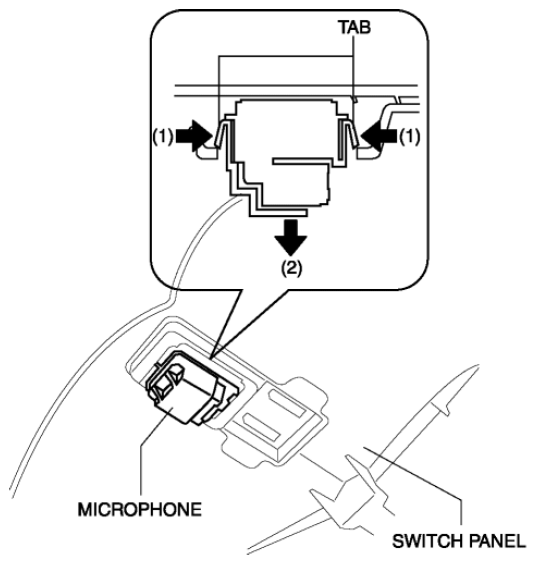

Fig 1: Identifying Microphone Removing Direction And Microphone Tabs Pressing Direction
Install in the reverse order of removal.
