Steering Switch Removal/Installation

  1. Switch the ignition OFF (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  4. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  5. Remove the screws.

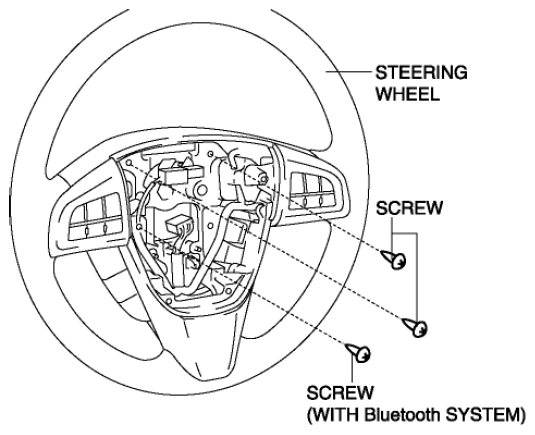

    Fig 1: Identifying Steering Wheel And Screws
    G08153469
  6. Remove the wiring harness from the hook.

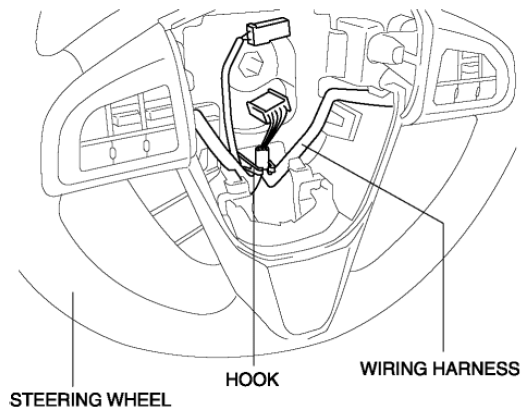

    Fig 2: Identifying Steering Wheel, Wiring Harness And Hook
    G08153470
  7. Remove the steering cover tabs and pins from the steering wheel.

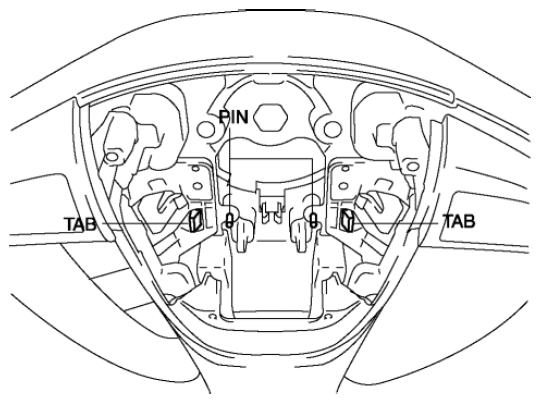

    Fig 3: Identifying Steering Cover Tabs, Pins And Steering Wheel
    G08153471
  8. Remove the steering cover.

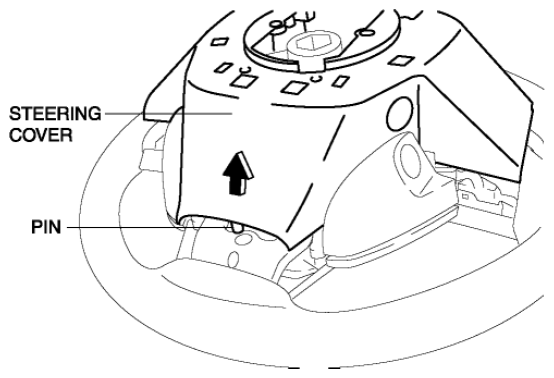

    Fig 4: Identifying Steering Cover And Pin
    G08153472
  9. Remove the screws.

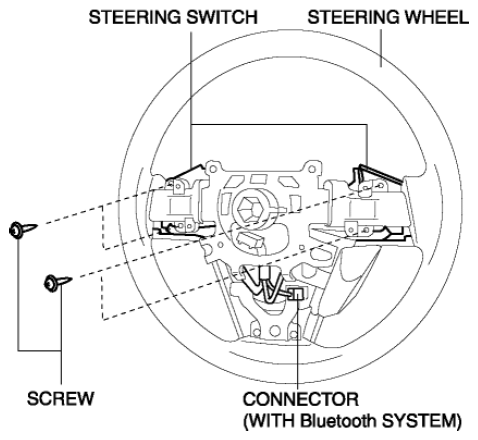

    Fig 5: Identifying Steering Wheel, Steering Switch, Connector (With Bluetooth System) And Screws
    G08153473
  10. Disconnect the connector. (with Bluetooth system)
  11. Remove the screws. (With Bluetooth system)

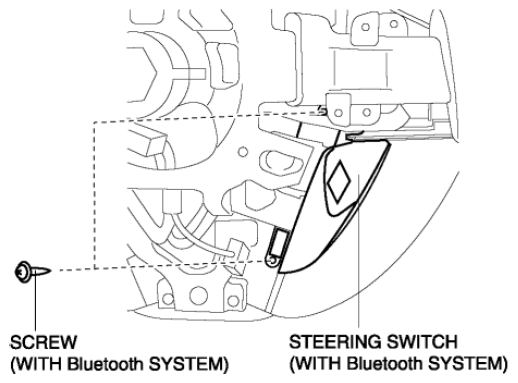

    Fig 6: Identifying Steering Switch (With Bluetooth System) And Screws (With Bluetooth System)
    G08153474
  12. Remove the steering switch pins from the steering wheel.

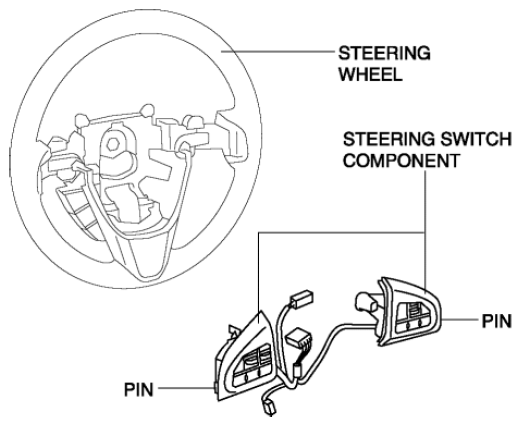

    Fig 7: Identifying Steering Switch Pins, Steering Wheel And Steering Switch Component
    G08153475
  13. Remove the steering switch component.
  14. Remove the screw.

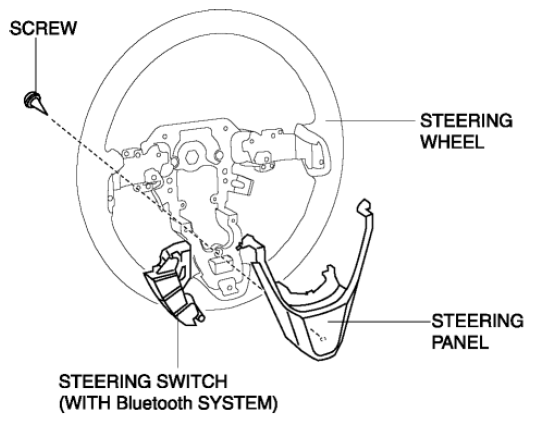

    Fig 8: Identifying Steering Panel, Screw And Steering Switch (With Bluetooth System)
    G08153476
  15. Remove the steering panel.
  16. Remove the steering switch. (With Bluetooth system)
  17. Install in the reverse order of removal.
