Tweeter Removal/Installation
Tweeter Removal/Installation
Disconnect the negative battery cable.
Remove the inner garnish. (See
INNER GARNISH REMOVAL/INSTALLATION
.)
Remove the tweeter in the direction of the arrow shown in the figure.

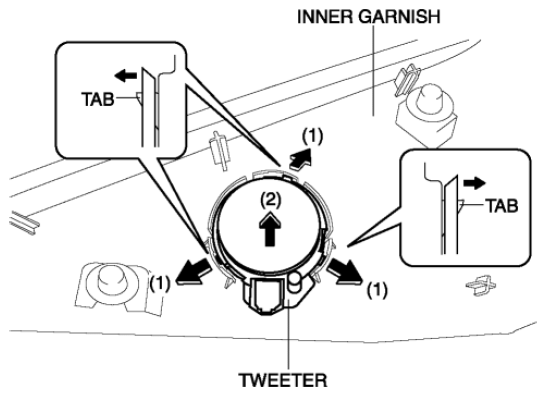

Fig 1: Identifying Tweeter Removing Direction And Inner Garnish
Install in the reverse order of removal.
