Combination Switch Removal/Installation

WARNING:

Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

Switch the ignition OFF (LOCK).
Disconnect the negative battery cable and wait for 1 min or more.
Remove the following parts:
1. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
2. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
3. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
4. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION .)
Disconnect the connector.

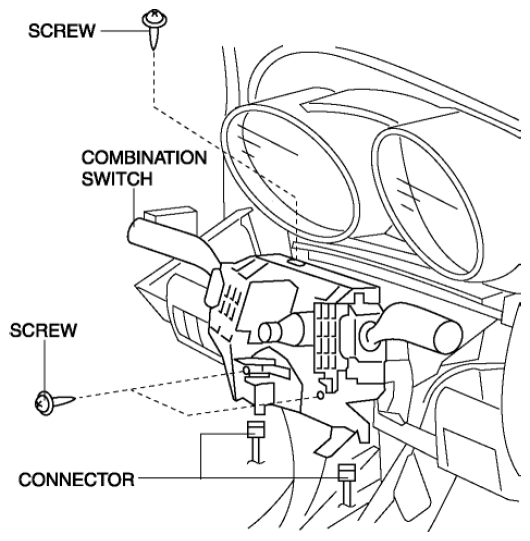

Fig 1: Identifying Combination Switch, Connector And Screws
Remove the screws.
Remove the combination switch.
Install in the reverse order of removal.
