Front Combination Light Removal/Installation

WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
NOTE:
  • Fogging or condensation on the inside of the front combination light may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the front combination lights rises after illuminating the headlights and a period of time has elapsed.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove bolts A.

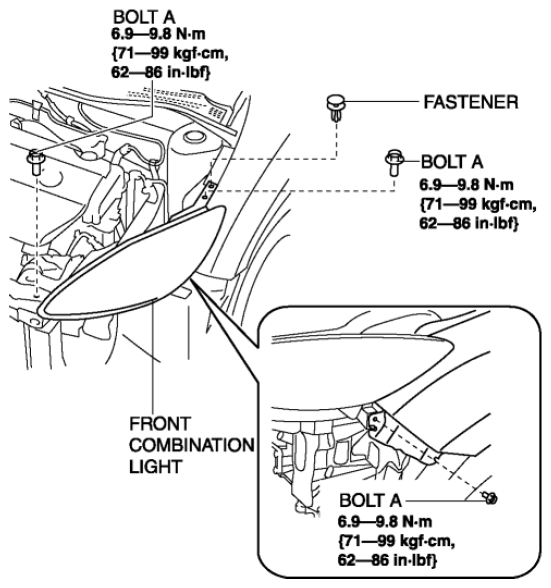

    Fig 1: Front Combination Light Bolts A And With Torque Specifications
    G08153286
  4. Remove the fastener.
  5. Disconnect the connectors.

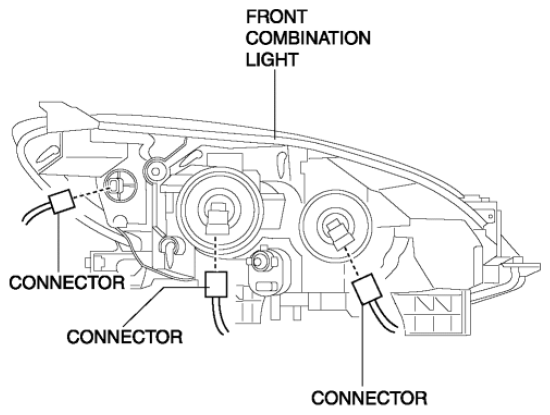

    Fig 2: Identifying Front Combination Light Connectors
    G08153287
  6. Pull the front combination light in the direction of the arrow shown in the figure and remove the pin from the body.

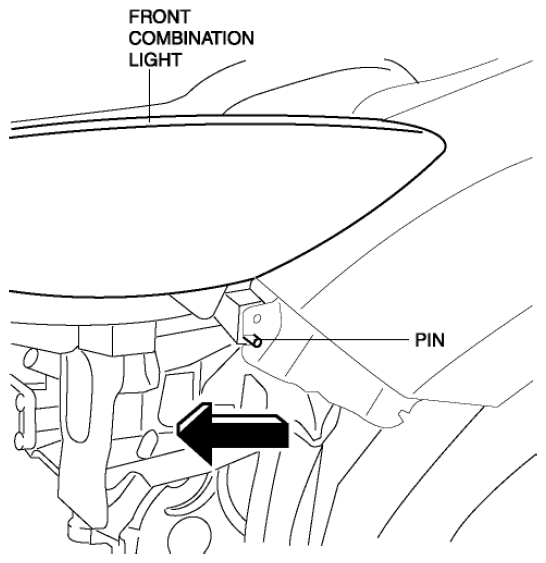

    Fig 3: Identifying Front Combination Light Pulling Direction
    G08153288
  7. Remove the front combination light.
  8. Remove bolts B.

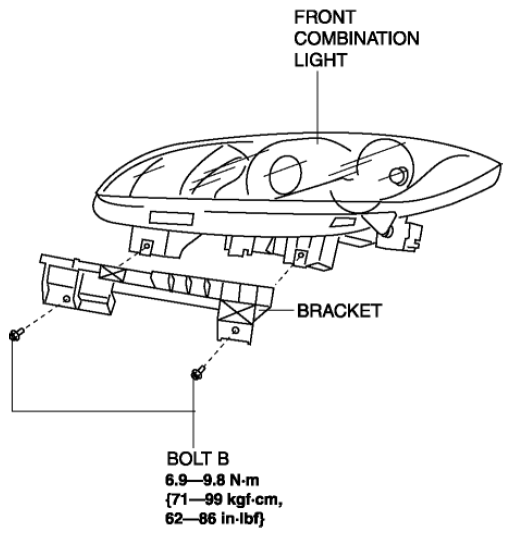

    Fig 4: Front Combination Light Bolts B With Torque Specifications
    G08153289
  9. Remove the bracket from the front combination light.
  10. Install in the reverse order of removal.
  11. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
