Front Fog Light Aiming

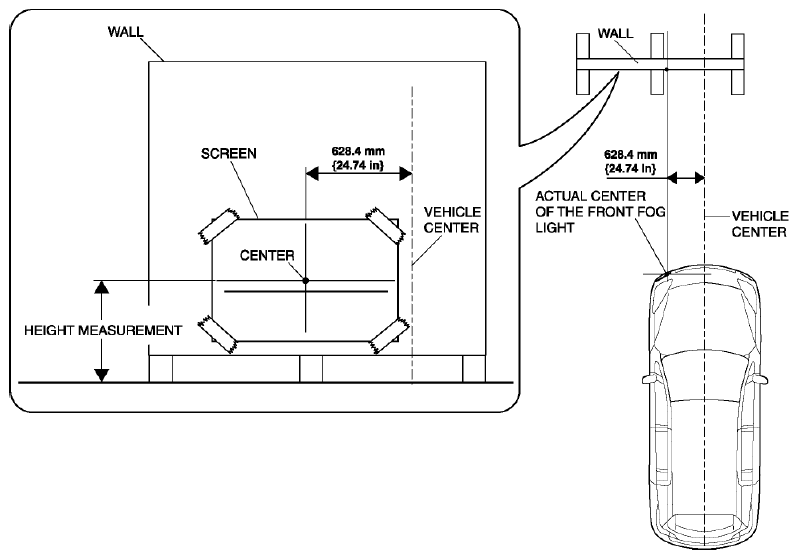

Make a screen as shown in the figure using double-weight, white paper.

Fig 1: Identifying Front Fog Light Brightness Borderline
Adjust the tire pressure to the specification.
Park the vehicle on level ground, in an unloaded condition.
Sit on the driver-side seat alone.
Line up the vehicle with the wall so that the distance to the front fog lights is 3 m {9.8 ft} from the wall.

Fig 2: Identifying Distance Between Headlights To Wall 3 m (9.8 ft)

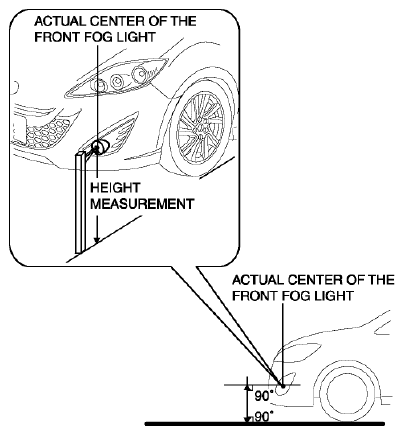

Measure the height at the center point of the front fog light.

Fig 3: Measuring Height At Center Point Of Front Fog Light
NOTE:
- Measure the height at the center point of the front fog light which is being adjusted the aiming because the vehicle height differs depending on vehicle conditions.
Align the center point of the front fog light with the center of the screen.

Fig 4: Aligning Center Point Of Front Fog Light With Center Of Screen
Block the light of the headlight which is not adjusted using a partition.
Start the engine and charge the battery.
Turn on the front fog lights.
Verify that the brightness border line of the front fog light is at the position indicated on the adjustment screen.
- If the brightness border line is not at the position indicated on the adjustment screen, perform the following adjustment.

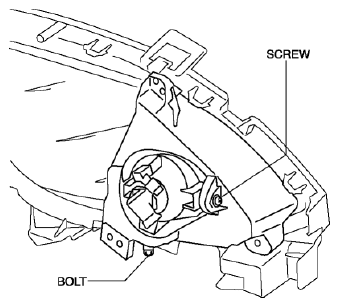

  - Loosen the bolt.

    Fig 5: Identifying Front Fog Light Bolt And Screw
  - Loosen the screw.

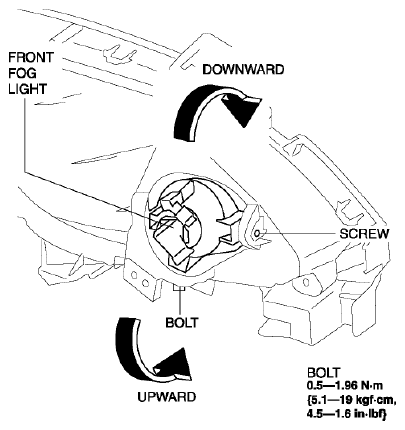

  - Move the front fog light in the direction of the arrow shown in the figure to adjust the brightness border line to the position indicated on the adjustment screen.

    Fig 6: Front Fog Light Moving Direction With Torque Specifications
  - Tighten the bolt.
  - Tighten the screw.
