Headlight Aiming
- Point the headlight beams to a wall and verify that the headlight beams are as shown in the figure.

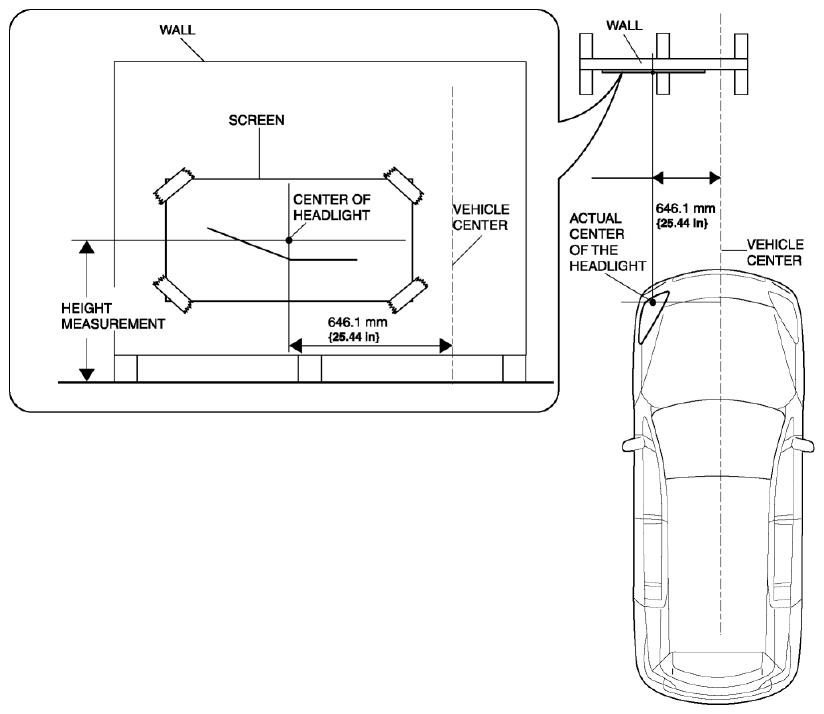

- Make a screen as shown in the figure using double-weight, white paper.
- Adjust the tire pressure to the specification.
- Park the vehicle on level ground, in an unloaded condition.
- Sit on the driver-side seat alone.
- Line up the vehicle with the wall so that the distance to the headlights is 3 m {9.8 ft} from the wall.
- Measure the height at the center of the headlight.
NOTE:
- Measure the height at the center point of the headlight that is being adjusted because the vehicle height differs depending on vehicle conditions.
- Align the center of the headlight with the center of the screen.
- Block the light of the headlight which is not being adjusted using a partition.
- Start the engine and charge the battery.
- Turn on the headlight low beams.
- Switch the headlight leveling switch to the "0" position (with headlight leveling system).
- Verify that the elbow point of the headlight is in the position indicated on the screen.
- If the elbow point is not in the position indicated on the screen, perform the following adjustment:

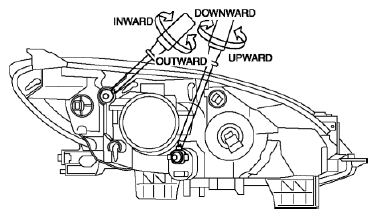

- Insert a Phillips driver into the position shown in the figure and adjust the headlights.
