Headlight Leveling Switch Inspection
- Disconnect the negative battery cable.
- Remove the following parts:
- Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
- Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
- Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
- Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
- Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
- Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
- Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)

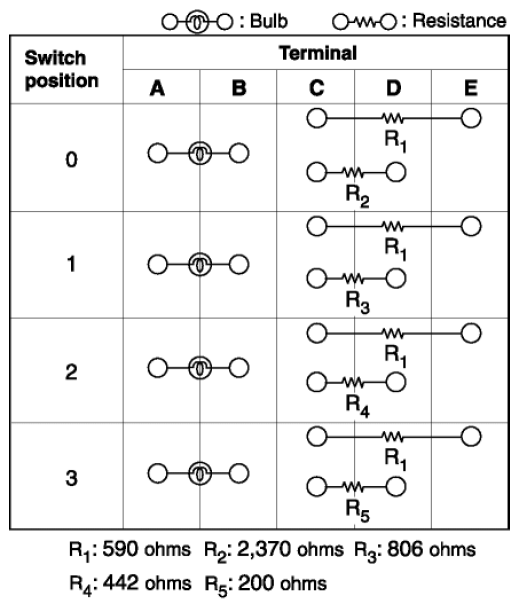

- Verify that the resistance and continuity between the headlight leveling switch terminals is as indicated in the table.
- If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the headlight leveling switch.
