Symptom Troubleshooting [Keyless Entry System]
›
Keyless Entry System Operation Inspection
Keyless Entry System Operation Inspection

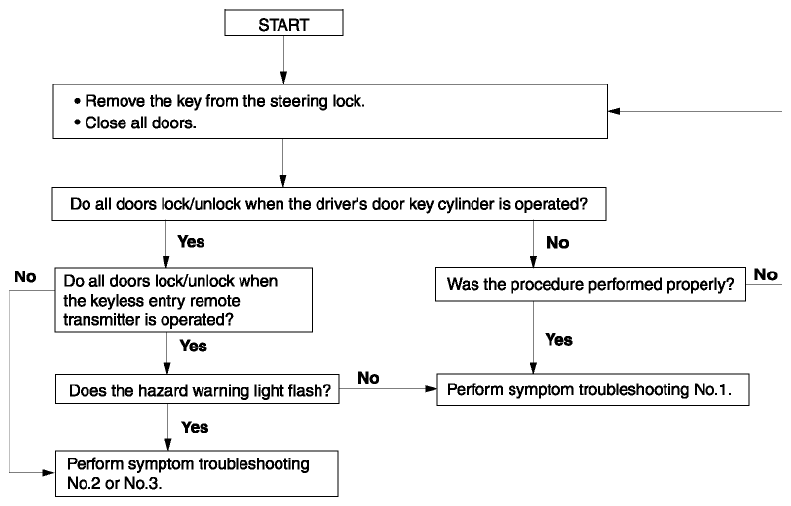

Fig 1: Keyless Entry System Operation Inspection Flow Chart
