Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Symptom Troubleshooting [Keyless Entry System]
›
Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram

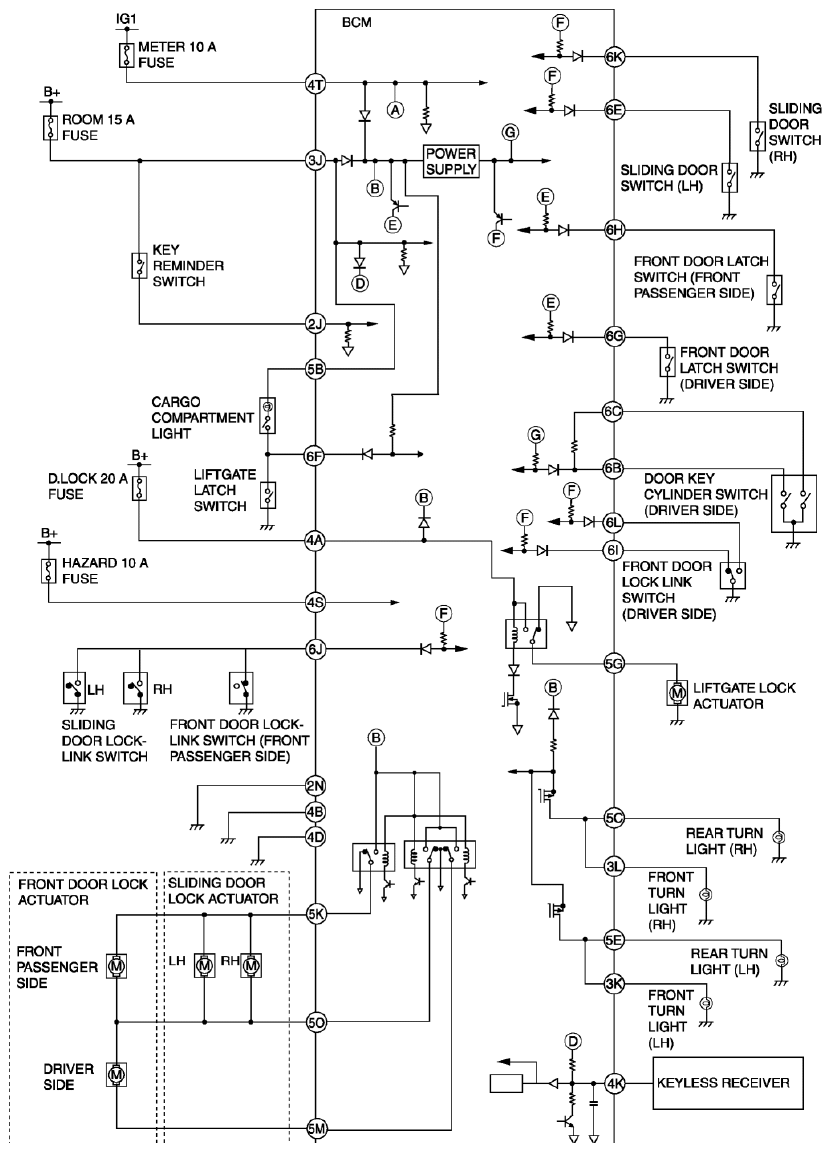

Fig 1: Keyless Entry System - Wiring Diagram
