Rear Spoiler Removal/Installation: Notes

  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Remove the caps.
  3. Remove the nuts A.

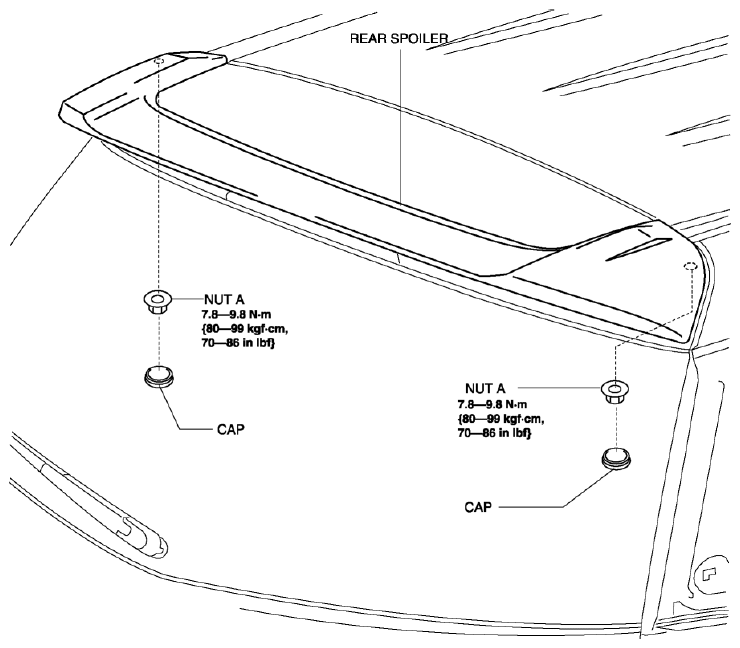

    Fig 1: Rear Spoiler, Caps And Nuts A With Torque Specifications
    G08153167
  4. Pull the rear spoiler in the direction of the arrow (1), (2) while detaching the clips B and double-sided adhesive tape.

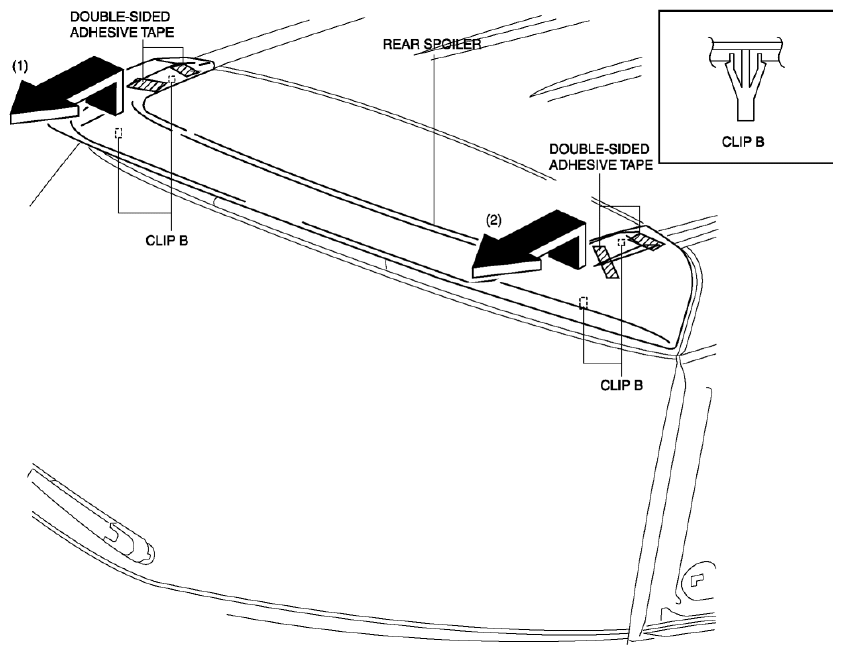

    Fig 2: Pulling Rear Spoiler
    G08153168
  5. Remove the rear spoiler.
  6. Install in the reverse order of removal. (See DOUBLE-SIDED ADHESIVE TAPE INSTALLATION NOTE .)
