Splash Shield Removal/Installation: Front

  1. Remove the screws A, screw B, and fastener C.

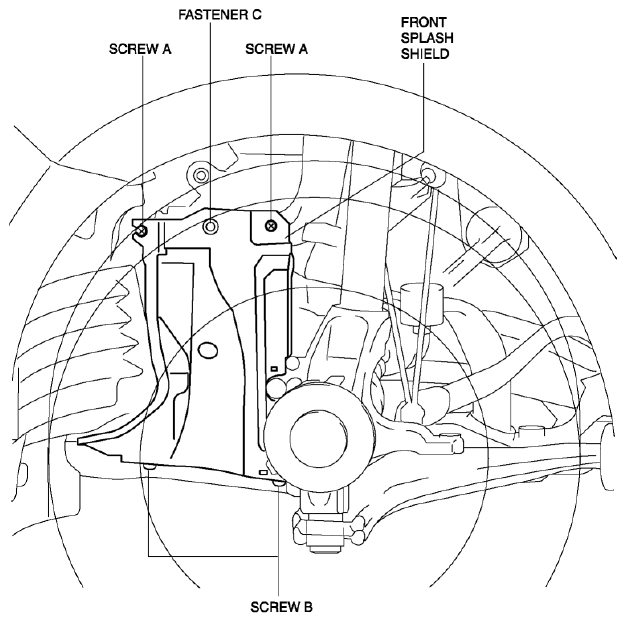

    Fig 1: Identifying Front Splash Shield, Screws A, Screw B And Fastener C
    G08153175
  2. Remove the front splash shield.
  3. Install in the reverse order of removal.
