Assist Handle Removal/Installation

Insert a flathead screwdriver into the service hole and remove the assist handle covers in the direction of arrow (1).

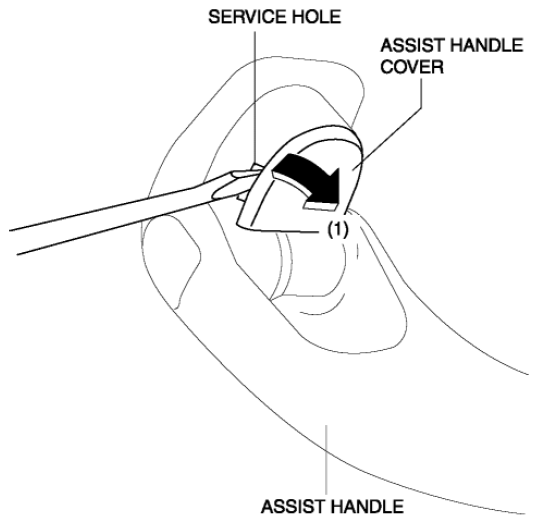

Fig 1: Removing Assist Handle Covers
Pull the assist handle in the direction of arrow (2).

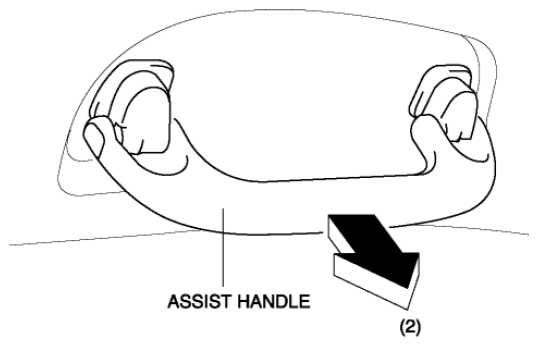

Fig 2: Pulling Assist Handle
Remove the assist handle.
Install in the reverse order of removal.
