Dashboard Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

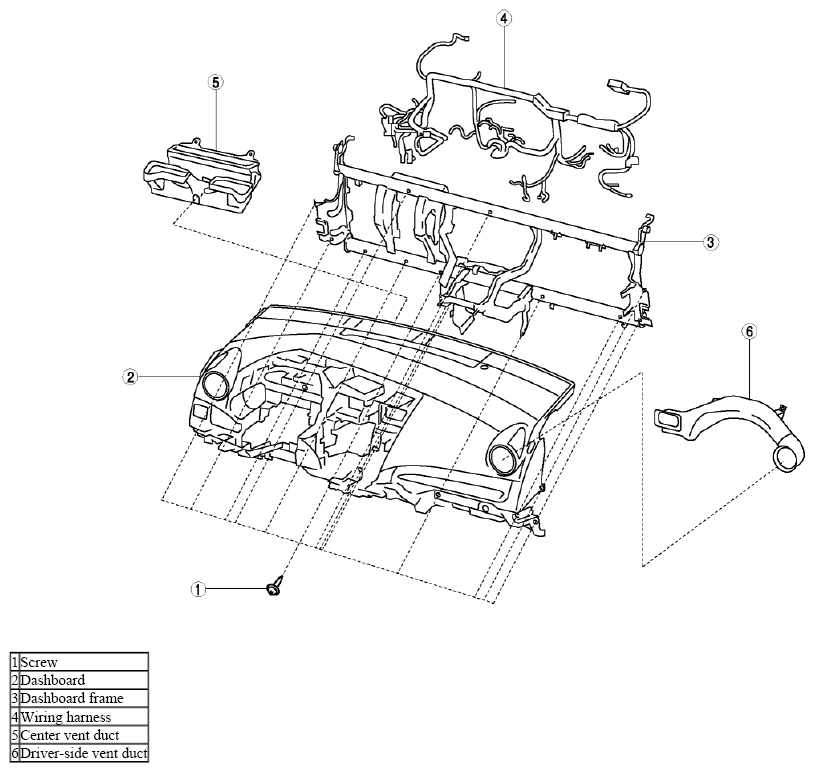

    Fig 1: Exploded View Of Dashboard
    G08153195
  2. Assemble in the reverse order of disassembly.
