Bolt H Installation Note

Fit the service hole of dashboard and hinge pillar inner shown in the figure.

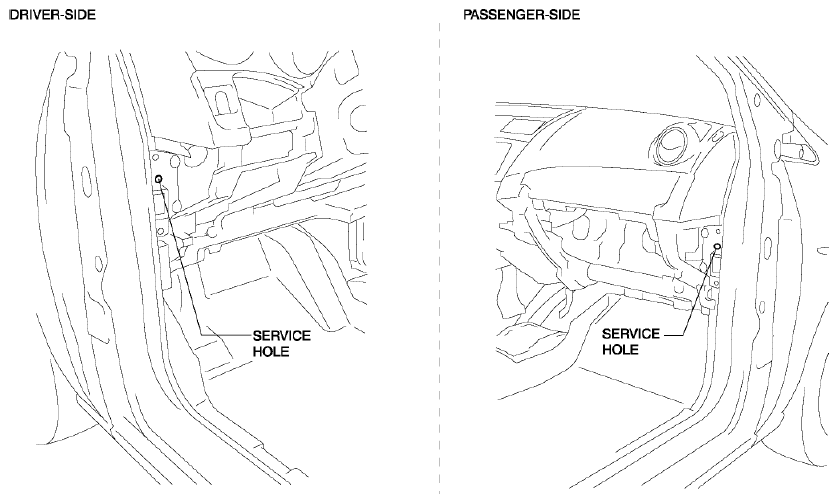

Fig 1: Identifying Service Hole Of Dashboard And Hinge Pillar Inner (Driver And Passenger Side)
Partially tighten the bolts H in the order (1), (2), (3), (4) shown in the figure.

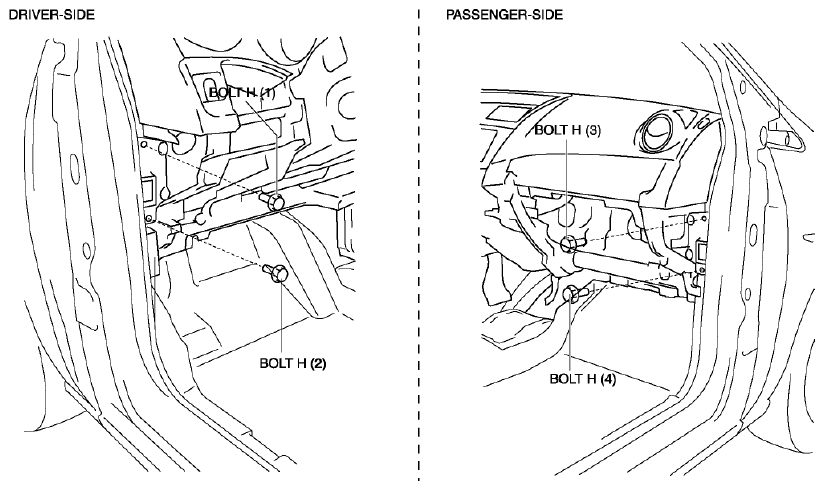

Fig 2: Identifying Dashboard Bolts H Tightening Sequence (Driver And Passenger Side)
Reconfirms fit the service hole of dashboard and hinge pillar inner, then tighten the upper side bolt H.

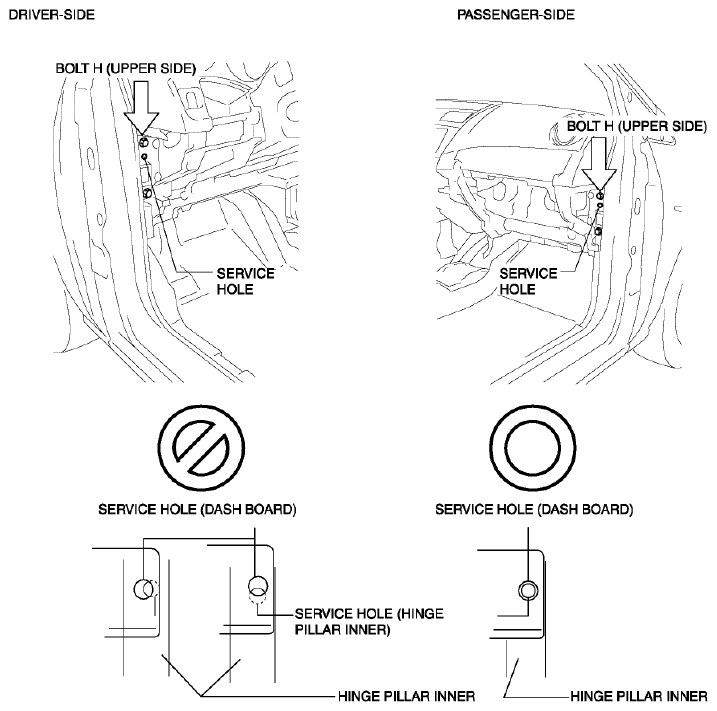

Fig 3: Identifying Service Hole Of Dashboard And Hinge Pillar Inner With Upper Side Bolt H (Driver And Passenger Side)
Adjust the height. (Passenger-side)
Tighten the all of bolts.
