Front Console Removal/Installation: ATX

CAUTION:
  • When remove the front console, always make sure that it does not interfere with the heater control unit. Affix protective tape along the shaded area shown in the figure to prevent scratches and damage.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    3. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    4. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    5. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

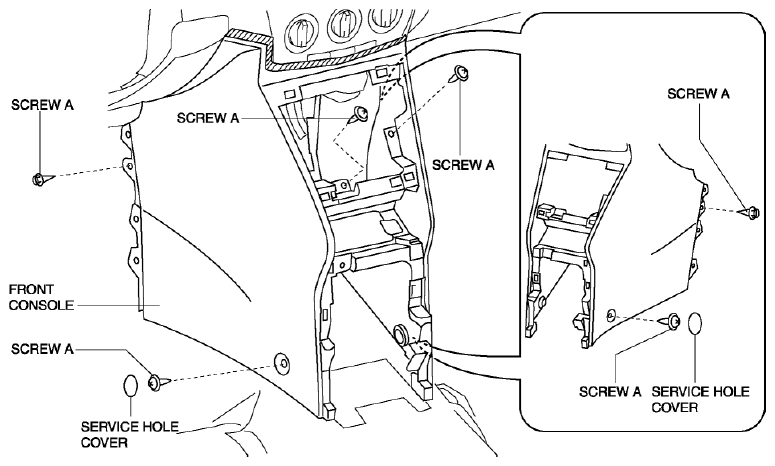

  3. Remove the service hole cover, then remove the screw A.
    Fig 1: Identifying Service Hole Cover, Screws A And Front Console (ATX)
    G08153215

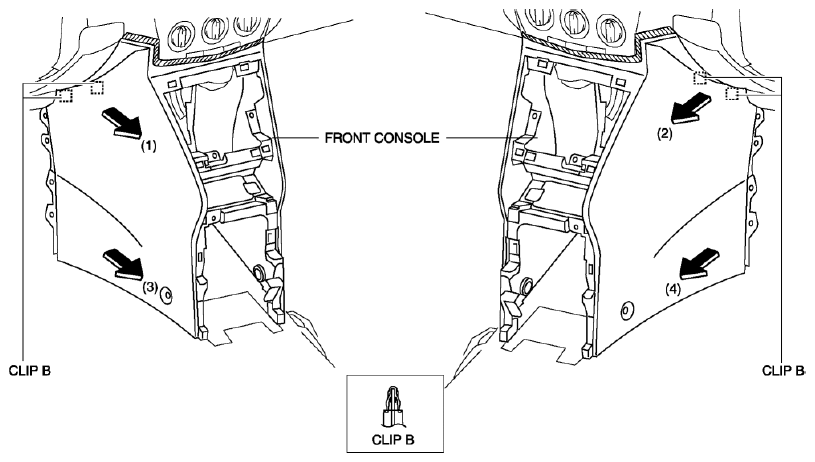

  4. Pull the front console in the direction of the arrow in the order of (1), (2), (3), (4) and remove the front console while detaching the clip B.
    Fig 2: Pulling Front Console (ATX)
    G08153216
  5. Install in the reverse order of removal.
