Rear Header Trim Removal/Installation

Pull the rear header trim in the direction of the arrow (1), (2), (3) and detach the clips A, clip B, pin C and guide D.

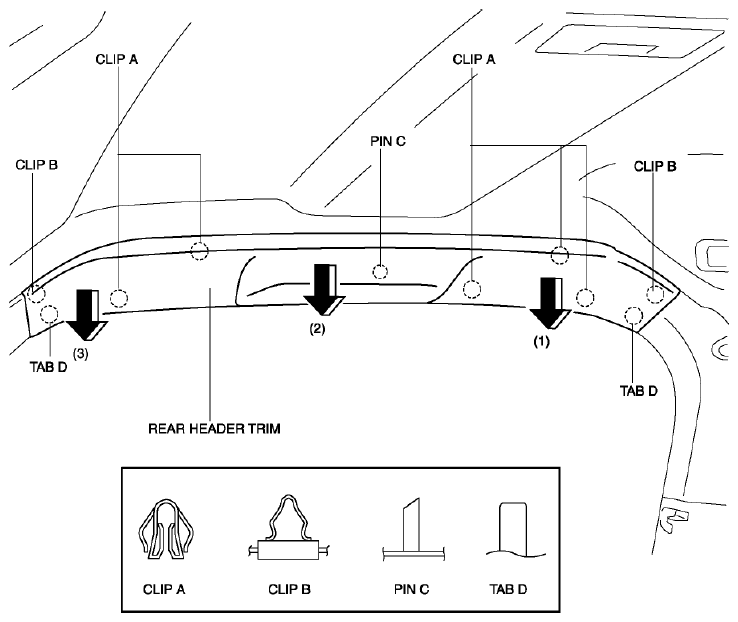

Fig 1: Pulling Rear Header Trim
Remove the rear header trim.
Install in the reverse order of removal.
